  • Fiber Optic Cable

    Fiber Optic Cable, also known as an optical fiber cable, is an assembly similar to an electrical cable, but containing one or more optical fibers that are used to carry light. The optical fiber elements are typically individually coated with plastic layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable are used for different applications, for example long distance telecommunication, or providing a high-speed data connection between different parts of a building.         [email protected]

    indoor fiber cableoutdoor fiber cablefiber
    Indoor Fiber Optic CableOutdoor Fiber Optic CableFiber


    ● Up to 72 cores, LSZH/PVC outer jacket

    ● Single mode and Multi-Mode (OM1-OM4)

    ● Used for communication and user equipmentin buildings


    ● 2~576 cores, Customized Length

    ● Single mode and Multi-Mode (OM1-OM4)

    ● Pressure & corrosion resistance, and tensile strength


    ● SM fiber and MM fiber

    ● Own prefabricated fiber optic rods

    ● G.652B, G.652D, G.652D-LL, G.657A1, G657A2


     Type PN Description
     Submarine Fiber Cable
     GYTA5333

     2 ~ 288 cores, Outdoor optical cable, Metal strength member; Aluminum-polyethylene adhesive and

    Steel-polyethylene adhesive inner jacket ;Single smaller round steel wire armoring;PE Outer jacket

     GYFTY33 2 ~ 288 cores, Non-metal strength member, PE inner jacket; Single smaller round steel wire armoring;PE Outer jacket
     Air BlowingFiber Cable GCYFY 2 ~ 144 cores, Tiny tube; Semi-dry water-blocking; HDPE jacket
     Direct Buried Fiber Cable GYTA53 2 ~ 576 cores, Metal strength member; Aluminum-polyethylene adhesive inner jacket; Steel-polyethylene adhesive outer jacket
     GYFTA53 2 ~ 576 cores, Non-metal strength member, Aluminum-polyethylene adhesive inner jacket; Steel-polyethylene adhesive outer jacket
     GYFTY53 2 ~ 576 cores, Non-metal strength member, PE inner jacket; Steel-PE adhesive outer jacket
     Dust Fiber Cable GYTA 2 ~ 576 cores, Metal strength member; Aluminum-polyethylene adhesive jacket
     GYFTY 2 ~ 576 cores, Outdoor optical cable, Non-metal strength member; PE jacket
     Aerial Fiber Cable ADSS

     2 ~ 288 cores, Single or Double protector All dielectric Self-Supporting optical cable, Non-metal strength

    member; PE inner jacket; PE outer jacket; 50~100M span

     GYXTW The Duct and Non Self-Supporting Optical Cable
     GYTC8A 2 ~ 288 cores, Figure ‘8 ’Self-Supporting optical cable, Metal strength member, Aluminum-polyethylene adhesive jacket
     GYTC8S 2 ~ 288 cores, Figure '8' Self-Supporting optical cable, Metal strength member; Steel-polyethylene adhesive jacket
     GYFTC8A53

     2 ~ 288 cores, Figure ‘8’ Self-Supporting optical cable, Non-metal strength member, Aluminum-polyethylene

    adhesive inner jacket, Steel-polyethylene adhesive outer jacket

     GYFTC8Y53

     2 ~ 288 cores, Figure ‘8’ Self-Supporting optical cable, Non-metal strength member; PE inner jacket;

    Steel-polyethylene adhesive outer jacket

     Indoor Fiber Cable GJBFJH Indoor break-out Cable Tight buffer fiber structure; Aramid yarn strength member; water blocking tape; LSZH jacket (2~72 cores)
     GJFJH Indoor fiber patch cord Cable Aramid yarn strength member; LSZH jacket (1~72 cores)
     GJPFJH Indoor Cabling Cable Tight buffer fiber structure; Aramid yarn strength member; LSZH jacket (1~72 cores)

     Combined

     GJPFJH

     Indoor Combined Cabling Cable Tight buffer fiber structure; Aramid yarn strength member; LSZH jacket (2~72 cores)

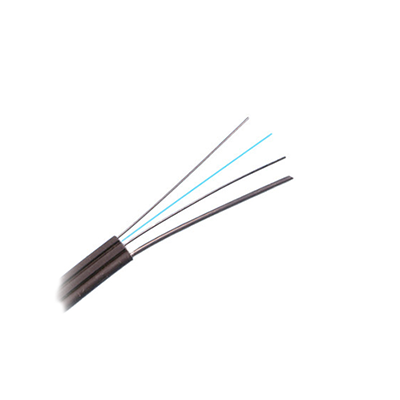

     FTTH Drop Fiber Cable GJXFH 1 ~ 72 cores, Indoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP; LSZH jacket; Non-Self-Supporting
     GJXH 1 ~ 72 cores, Indoor Cabling Bow-Type Drop Cable, Metal strength member; LSZH jacket; Non-Self-Supporting
     GJYXCH 1 ~ 72 cores, Outdoor Cabling Bow-Type Drop Cable, Metal strength member; LSZH jacket; Self-Supporting
     GJYXDCH Outdoor Cabling Bow-Type Drop Cable , Optical fiber ribbon,Metal strength member ; LSZH jacket; Self-Supporting
     GJYXFCH 1 ~ 72 cores, Outdoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP; LSZH jacket; Self-Supporting
     GJYFXTCBY 1 ~ 72 cores, Self-Supporting optical cable; Non-metal strength member GFRP; Water blocking yarn; PE jacket; Oblateness figure


    Product Certificate


    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system,

    OHSAS18001 occupational health safety management system,and its fiber optical cable meet

    the requirements of European CE, RoHs, Chinese TLC



    Packaging & Shipping

    Packaging and Shipping.png

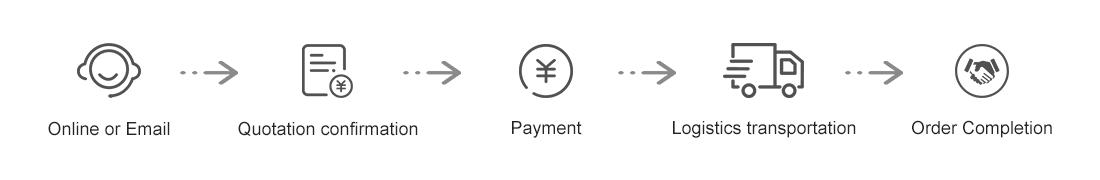

    Transaction Process

    Transaction Process.png

    Sopto can provide Outdoor Fiber Optical Cables , Indoor Fiber Optical Cables , FTTH Cables , If you want to know more about the exact information of the specified fiber optical cable, Please contact us.
