  • Submarine Fiber Cable

    Submarine Fiber cable, externally wrapped with steel or steel wire, used directly under water, requires resistance to external mechanical damage and strong water pressure.
  • Contact Us
  • ● 2 ~ 288 cores

    ● Steel wire as strength member.

    ● Loose-tube twisted single sheath structure

    ● Steel wire armoring

    ● Applicable for underwater 100 meters

    ● Loose tube material with good hydrolysis resistance and high strength; Flooding jelly compound to ensure critical protection of fiber

    ● Compact structure,excellent waterproof performance, excellent mechanical performance and temperature performance

    ● bunched or ribbon fiber

    ● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM(OM1,OM2,OM3,OM4) are available;

    ● PE,LSZH outer jacket material optional

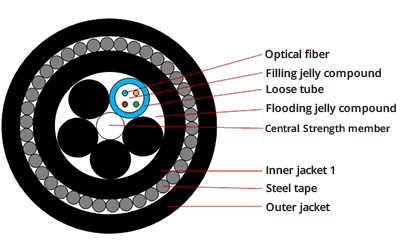

    Cross Section of Cable

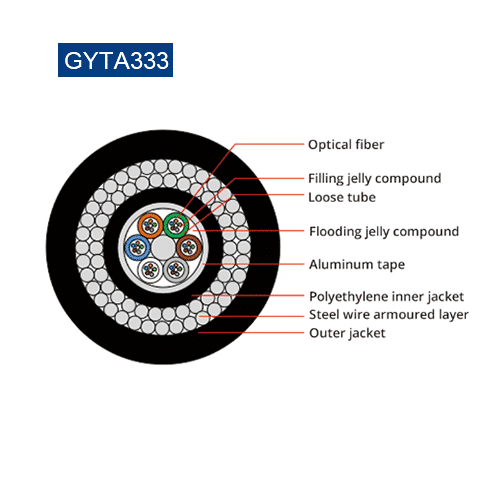

                               GYTA5333

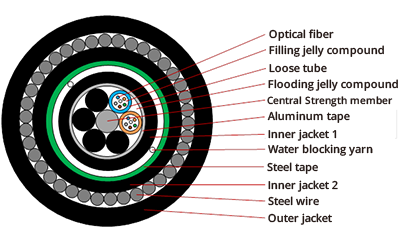

                               GYFTY33


    Working Condition

    ItemStandardParameters
    Operation temperatureIEC 60794-1-2 F1760


    Drum

    Part NO.Height (mm)Width (mm)Inner diameter  (mm)Length(km)Drum   type
    GYTA533312507605002Iron wood drum
    GYFTY339507604002Iron wood drum


    Product Certificate

    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system, ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC




    ● Long-distance backbone network

    ● Urban ring network

    ● Access Network, FTTX

    ● Relay between communication machine rooms



     Cable Type

     Product Description

     Application

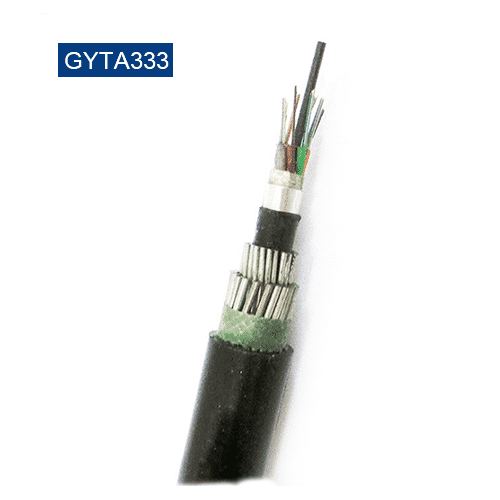

     GYTA5333

     Outdoor optical cable , Metal strength member; Aluminum-polyethylene adhesive and Steel-polyethylene adhesive inner jacket ;Single smaller round steel wire armoringPE Outer jacket

     Direct Buried or Submarine

     GYFTY33

    Outdoor optical cable , Non-metal strength member, PE inner jacket; Single smaller round steel wire armoringPE Outer jacket

     Direct Buried or Submarine

    Notes:

    1.Flooding jelly compound default

    2.The relevant technical parameters can be adjusted according to the customers’ demands;

    3.The block water way can be adjusted according to the customers’ demands;

    4.The design flame resistance,anti-rodent,termite resistant cable according to the customers'demands.

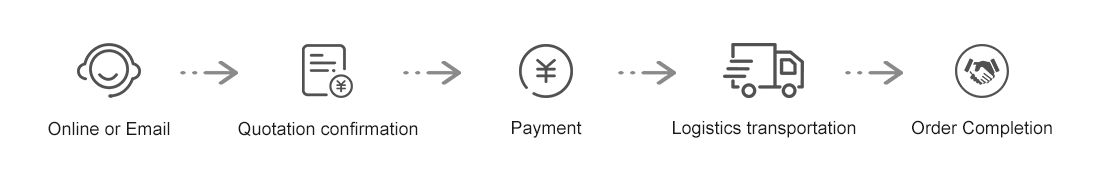

    Transaction Process
