  • EOC master EOC master
  • EOC Master

    Ethernet Over Cable is deployed in the existing CATV HFC network to carry out internet and CATV bidirectional networking reconstruction. It consists of master and slave. EOC Master is usually resided at optical node.
  • Contact Us

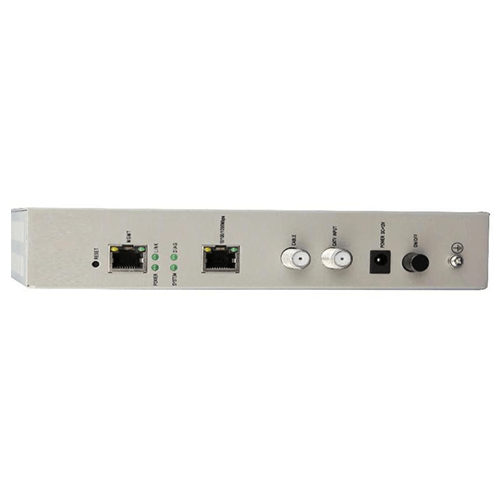

  • Indoor type

    ● HomePlug AV or IEEE1901 standard

    ● AR7410 chipset EOC Module

    ● Two 10/100/1000M Auto-negotiation Ethernet ports

    ● One or two TV input port

    ● One or two Cable output port

    ● Support WEB, CLI, SNMP based network management

    ● Aluminum alloy die casting shaping, good heat dissipation

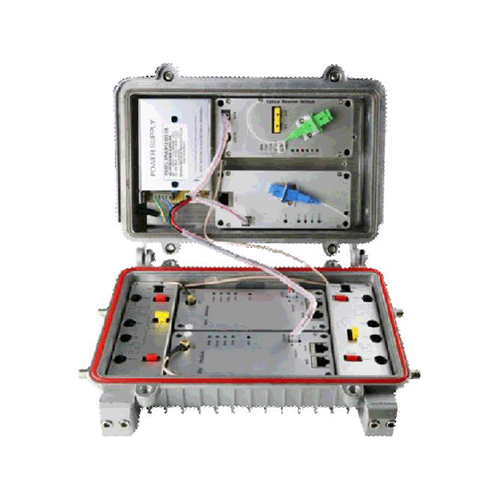

    Outdoor type

    ● With two EOC Master modules, one ONU module and one OR module

    ● Outdoor waterproof designed

    ● One CATV optical input, two or four TV+ DATA mixed output

    ● OR support AGC

    ● CATV RF output up to 108dBuv

    ● ONU module compliant with the GPON standard of g.984, g.983, 802.3-2005, CTC EPON equipment technical requirementsONU module provides two auto-negotiation GE ports

    ● Support the EMS network based on SNMP

    ● Line Power (from 90 to 264 VAC) or Cable Line Power (60VAC) optional



    ● CATV

    ● Internet Access

    ● VOD

    ● IPTV

    ● Camera monitor system


     Brief Information

     Product Model

     Descriptions

     Indoor type

     SPE-7201

     Built-in one 74 series chipset EOC Module1 TV input port ,1 Cable (mixed signals) output port 2   10/100/1000M UTP uplink ports. 220V AC power supply

     SPE-7202

     Built-in one 74 series chipset EOC Module2 TV input port ,2 Cable (mixed signals) output port 2   10/100/1000M UTP uplink ports. 220V AC power supply

     Outdoor type

     SPE-7932

     Built-in one PON ONU Module, one OR module and two 74   series chipset EOC Modules One PON   uplink port, one CATV optical input, two TV+ data mixed output port. Outdoor   waterproof designed. 220VAC or 60VAC power supply.

     SPE-7934

     Built-in one PON ONU Module, one OR module and two 74   series chipset EOC Modules One PON   uplink port, one CATV optical input, four TV+ data mixed output port. Outdoor   waterproof designed. 220VAC or 60VAC power supply. Built-in WDM Optional

    Note: 1.PON ONU Module refers to EPON ONU Module or GPON ONU Module

             2.Built-in WDM optional in OR Module
