  • Standalone 16PON GPON OLT
  • Standalone 16PON GPON OLT

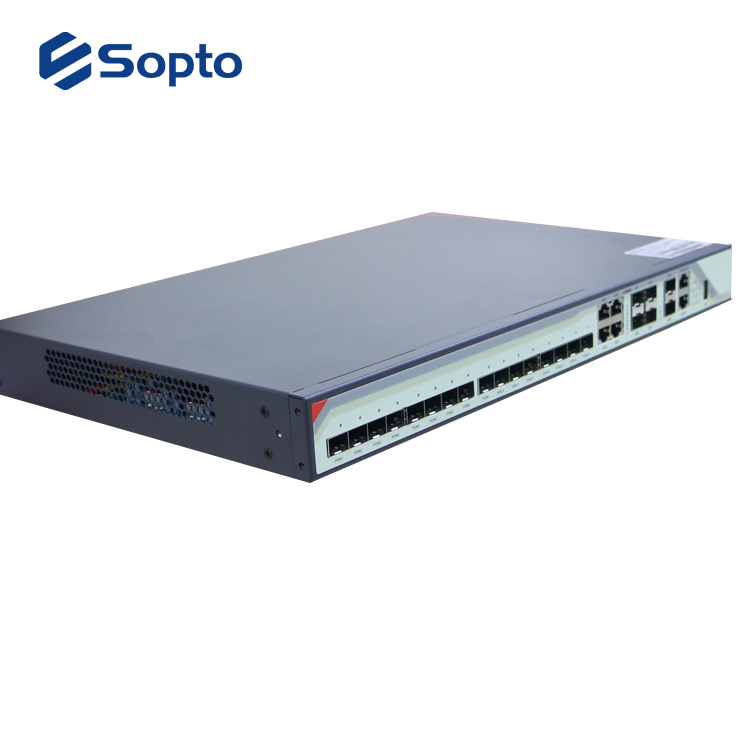

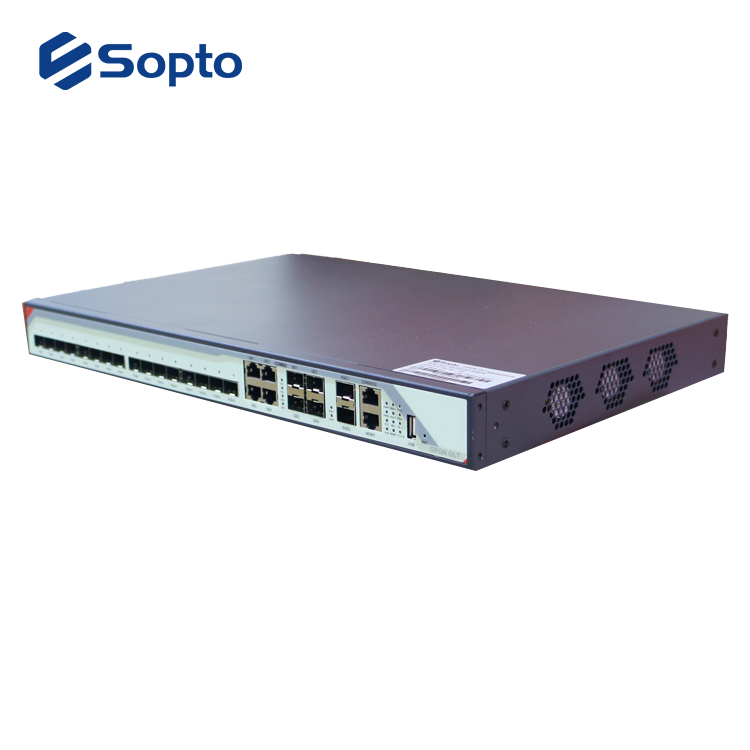

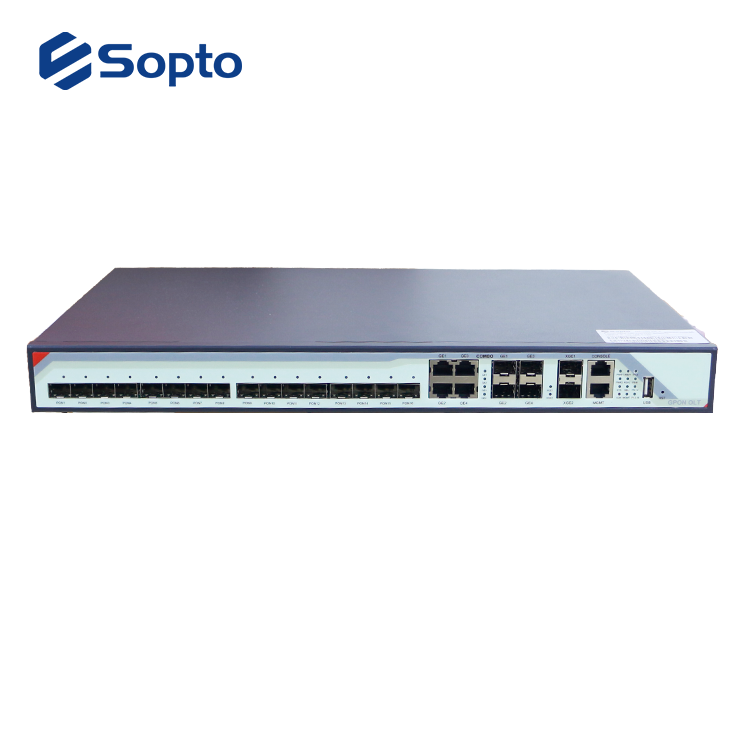

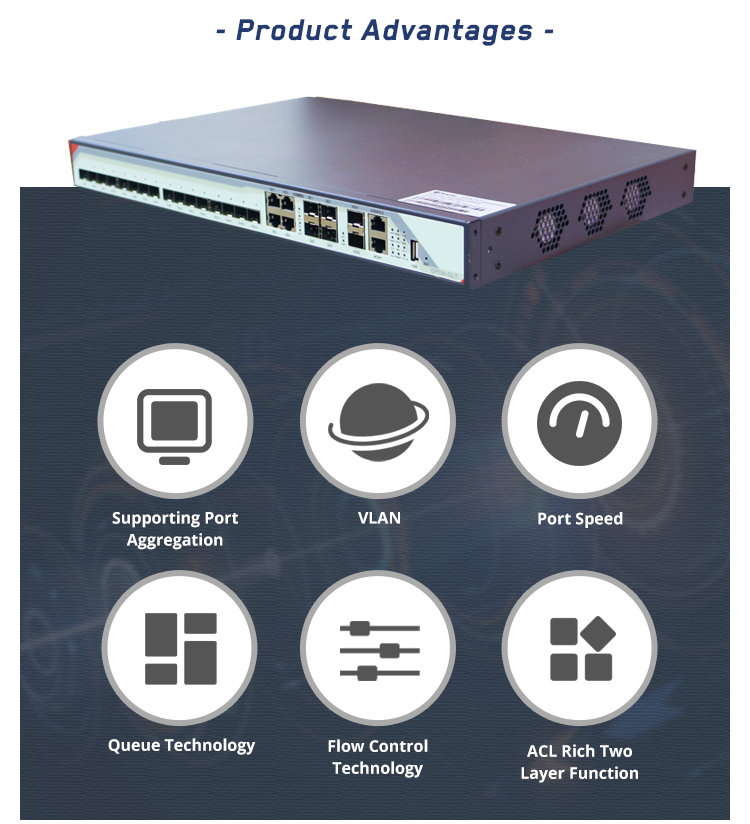

    SOPTO’s 16 PON GPON OLT completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE COMBO ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 16 GPON ports.
  • Contact Us
  • ● Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry

    ● Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol

    ● Layer 2 Switching Function

    ● Layer 3 Switching Functionin development

    ● QOS Guarantee

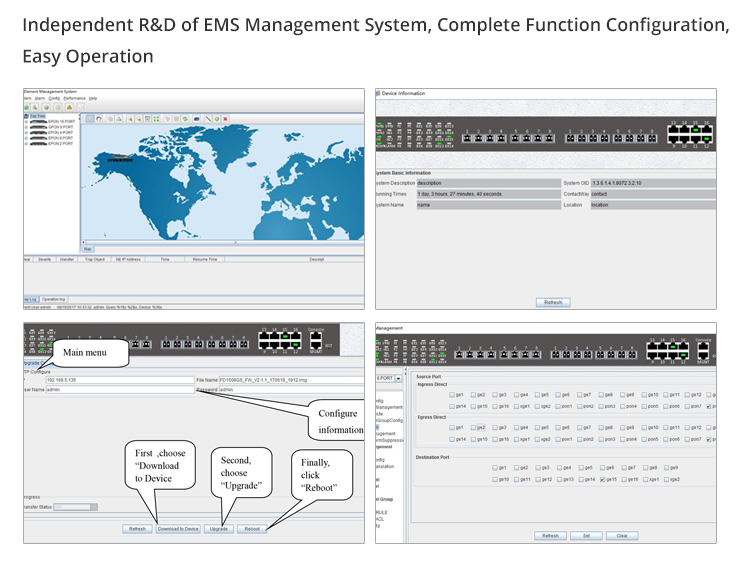

    ● Easy-to-Use Management System


    Specification

    Size

    440mm(L)*391mm(W)*44mm(H)

    Weight

    4kg

    Backplane Bandwidth

    136G

    Maximum power

    70W

    Working environment

    Working temperature

    050

    Storage temperature-

    -4085Relative

    Relative humidity

    590% (Non-condensing)

    Power supply



    220VAC

    AC: 90V240V47/63Hz

    -48DC

    DC:-36V-72V

    Support BBU

    AC: 11V14V

    Management Rack

    Type

    1U 19-inch standard box

    Slot

    2 power module slot

    USB Port

    1 Type-C interface

    Management Port

    1 100/1000BASE-Tx  out-band Ethernet port

    1 CONSOLE local management port

    Uplink Port

    COMBO port

    4 10/100/1000M auto-negotiation Ethernet ports

    4 SFP interfaces

    10-Gigabit

    2 SFP+ interfaces

    PON Port

    Quantity

    16

    Physical interface

    SFP slot

    Interface type

    ITU-TG.984.2 Class   B+/Class C+

    Max splitting ratio

    1:128

    PON Port attribute



    Transmission distance

    20KM

    Port rate

    Downstream:2.5Gbps        Upstream: 1.25Gbps

    Wavelength

    Forwarding:   1490nm        Receiving: 1310nm

    Interface type

    SC/UPC

    Fiber type

    9/125μm SMF   (Single Mode Fiber)

    Light transmission   power

    Class   B+  +1.5+5dBm

    Class   C+  +3+7dBm

    Receiving sensitivity

    Class   B+  -28dBm

    Class   C+  -30dBm

    Saturation power

    Class   B+  -8dBm

    Class   C+  -12dBm

    Network management method

    Support CLISNMPTELNETSSHWEB

    —————————————————————————————————————————————————————————

    onuonu

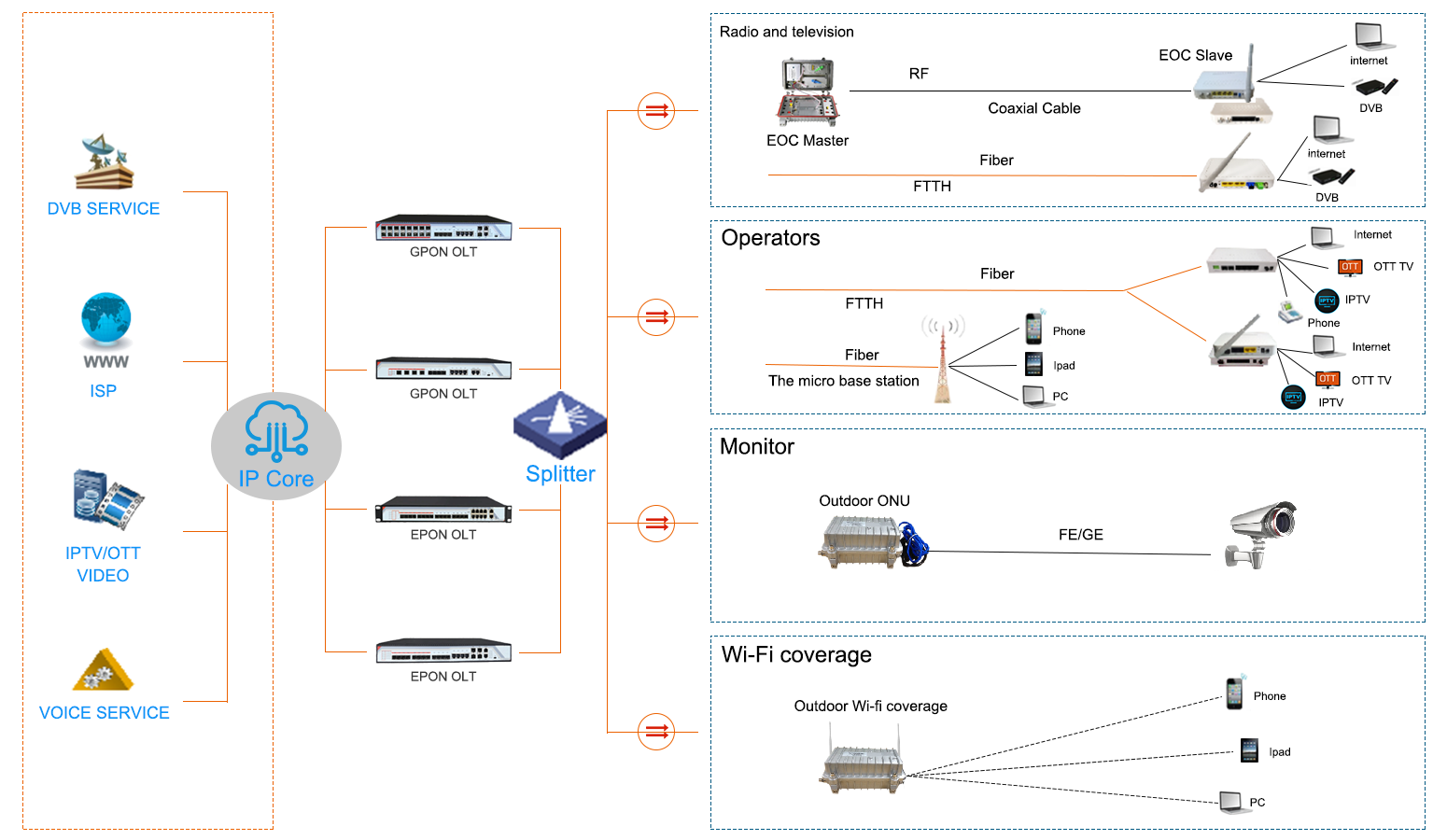

    GPON / EPON OLT Network Applications

    PON OLT Network Application.png

    Product

    Model

    Configuration

    Notes

    GPON OLT

    SPO-GS16424

    1 U standalone GPON OLT with 1 USB interface, 16 PON ports, 4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration

    without SFP modules
