  • 6G LTE SFP+

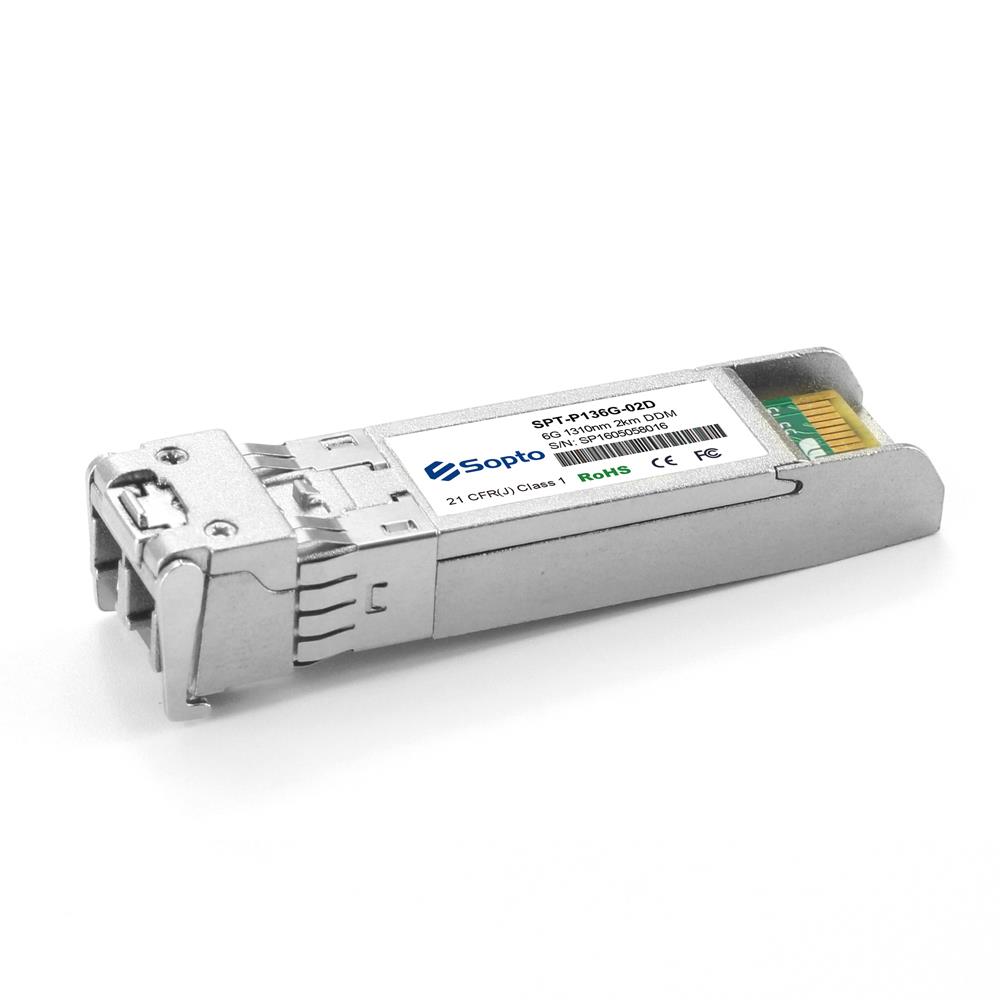

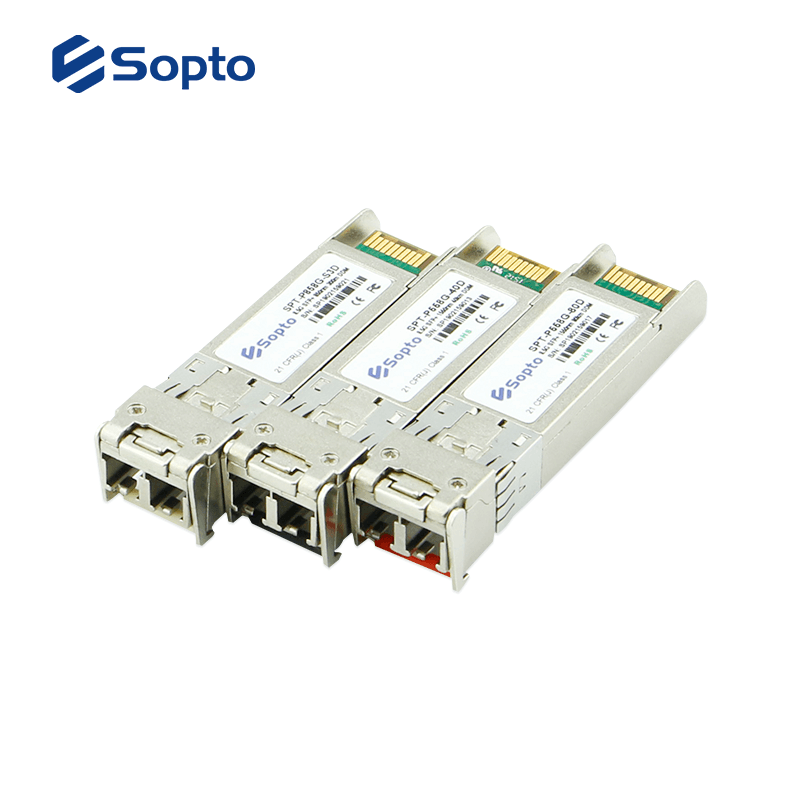

    SOPTO’s 6G SFP+ is a series of optical transceiver modules designed for use in LTE/OBSAI/CPRI application. For the OBSAI application, the rates are 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s. For the CPRI application, the rates are 9.830 Gb/s, 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s.They are compliant with the SFP+ MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us
  • ● RoHS-6 compliant

    ● Single +3.3V power supply

    ● Built-in digital diagnostic functions

    ● Supports data rate up to 6.25Gbps

    ● CPRI/OBSAI Compatible Optical Interface

    ● Transmission distance up to 300m on MMF OM3 and 80km over SMF

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C


    Hot Model

    P/NDescriptionDetails
    SPT-P856G-S3D850nm, 4.9G/6.144Gbps, SFP+ 300m, DDM,0ºC ~ +70ºC

    PDF

    SFP-P136G-10D1310nm, 4.9G/6.144Gbs, 10km,  0ºC ~ +70ºC,DDM

    PDF


    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

    transceiver certificate.png

    ● Radio Base Station

    ● LTE optical repeater application

    ● OBSAI interface, such as 6.144/1.536/3.072/1.536Gbps and 768Mbps

    ● CPRI interface, such as 6.144/3.072/2.4576/1.228Gbps and 614Mbps


    Related Articles

    ●  Single Mode Fiber Transceivers

    ●  What is the Basic Principle of an Optical Module

    ●  Fiber Optic Transceiver Module's Selection and Use Skills

    ●  Introduction to common package types of optical modules


    PN

    Data Rate(Gbps)

    Distance

    Fiber

    Output Power(dBm)

    Sensitivity(dBm)

    Interface

    Temp.

    DDM

    SPT-P856G-S3D

    6.25

    300m/OM3

    MM

    -5-1

    -11

    Duplex  LC

    0 to 70

    D

    SFP-P136G-10D

    6.25

    10km

    SM

    -50

    -15

    Duplex  LC

    0 to 70

    D

    SFP-P136G-20D

    6.25

    20km

    SM

    -40

    -15

    Duplex  LC

    0 to 70

    D

    SPT-P556G-40D

    6.25

    40km

    SM

    03

    -17

    Duplex  LC

    0 to 70

    D

    SPT-P556G-80D

    86.25

    80km

    SM

    05

    -23

    Duplex  LC

    0 to 70

    D
