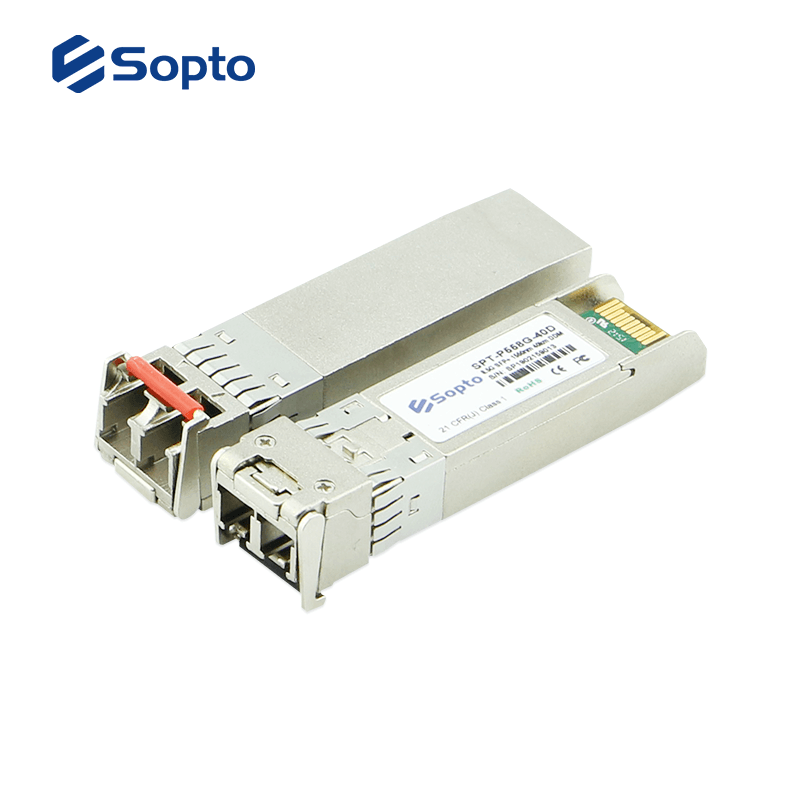

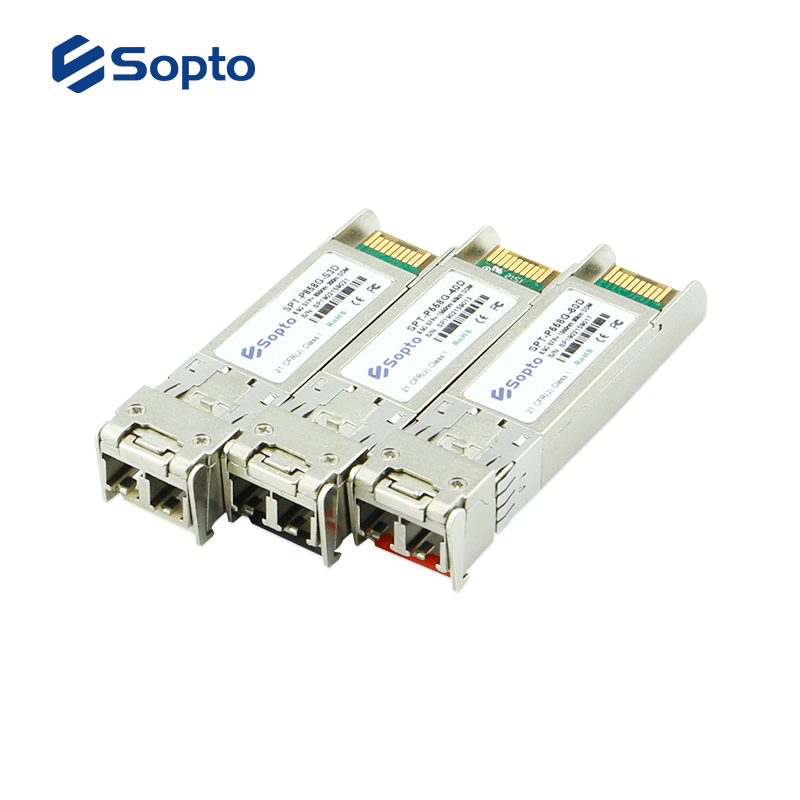

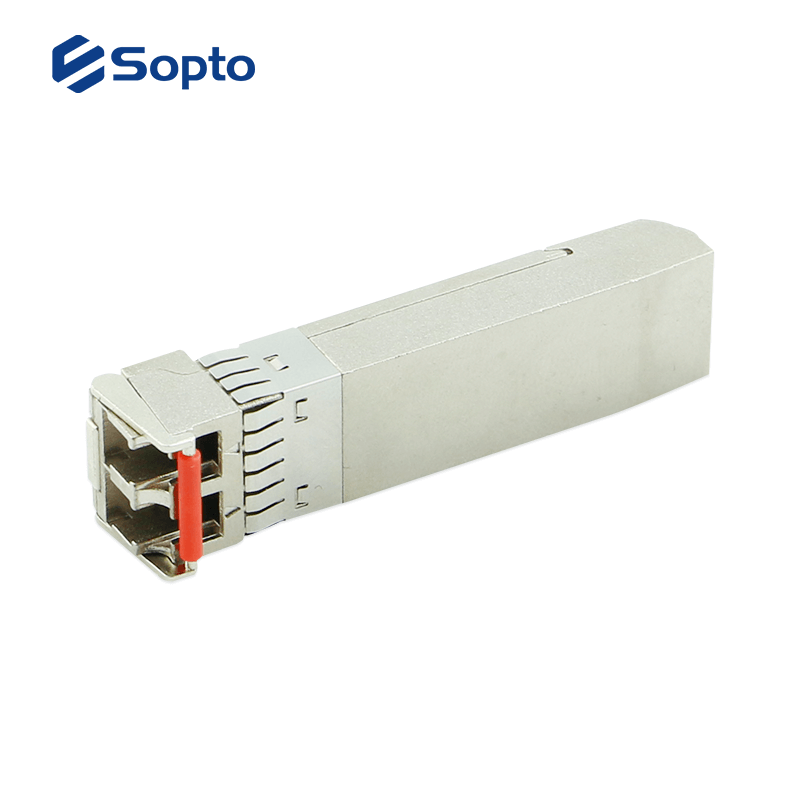

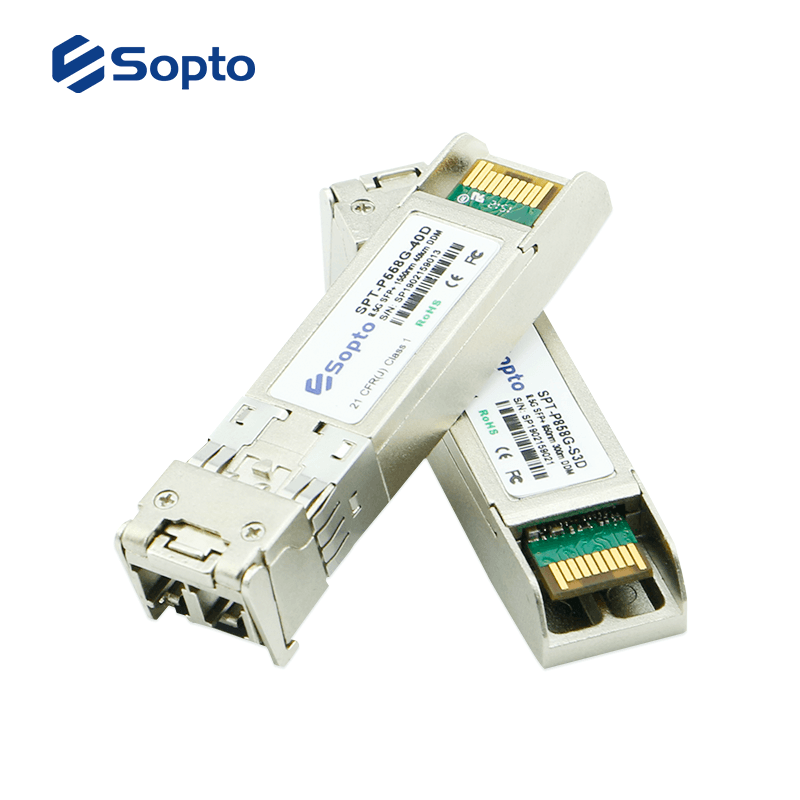

    SOPTO’s 8G FC SFP+ is a series of optical transceiver modules designed for use in 8G/16G Fiber Channel links. They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
  • Contact Us
  • ● RoHS-6 compliant

    ● Duplex LC Interface

    ● Low power dissipation

    ● Single +3.3V power supply

    ● Supports data rates up to 8.5Gb/s

    ● Built-in digital diagnostic functions

    ● Support Multi-rate for 8G/4G/2G/1G FC

    ● Transmission distance up to 100m on MMF OM3 and 80km over SMF

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C


    Hot Model

    P/NDescriptionDetails
    SPT-P858G-S3D850nm 8.5G LC Connector 300m with DDM Commercial Temperature

    PDF

    SFP-P138G-10D1310nm, 2.125/4.25/8.5Gbs,  LC Connector 10 km with DDM Commercial Temperature

    PDF


    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

    transceiver certificate.png



    ● 8X/4X/2X/1X FC at 8.5/4.25/2.125/1.0625Gbps



    PN

    Data Rate (Gbps)

    Distance

    Fiber

    Output Power(dBm)

    Sensitivity(dBm)

    Interface

    Temp.

    DDM

    SPT-P858G-S3D

    8.5

    300m/OM3

    MM

    -5-1

    -11

    Duplex LC

    0 to 70

    D

    SFP-P138G-10D

    8.5

    10km

    SM

    -50

    -15

    Duplex LC

    0 to 70

    D

    SFP-P138G-20D

    8.5

    20km

    SM

    -40

    -15

    Duplex LC

    0 to 70

    D

    SPT-P558G-40D

    8.5

    40km

    SM

    03

    -17

    Duplex LC

    0 to 70

    D

    SPT-P558G-60D

    8.5

    60km

    SM

    04

    -22

    Duplex LC

    0 to 70

    D

    SPT-P558G-80D

    8.5

    80km

    SM

    05

    -23

    Duplex LC

    0 to 70

    D
