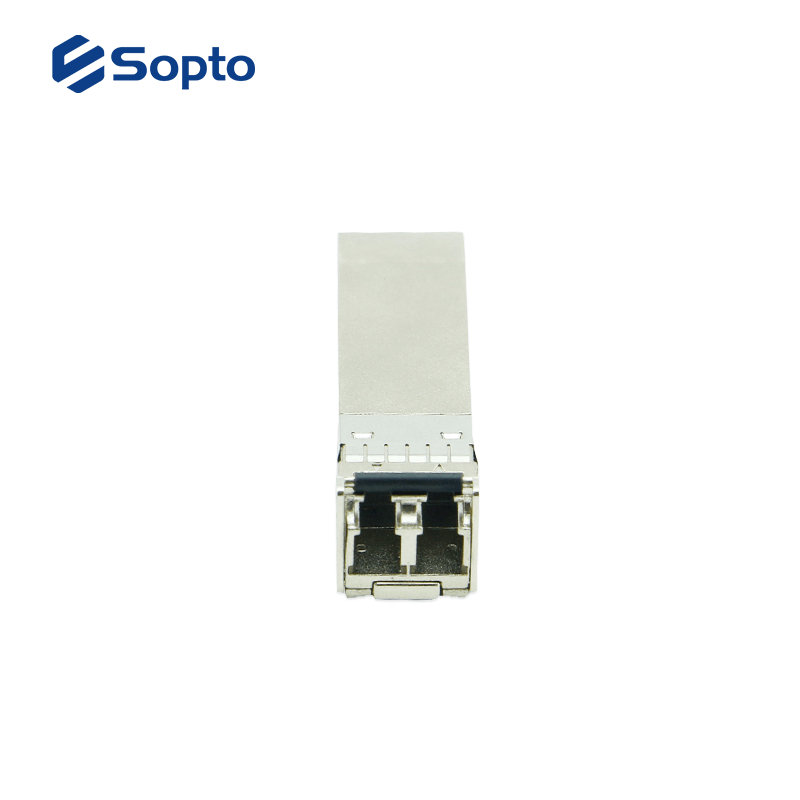

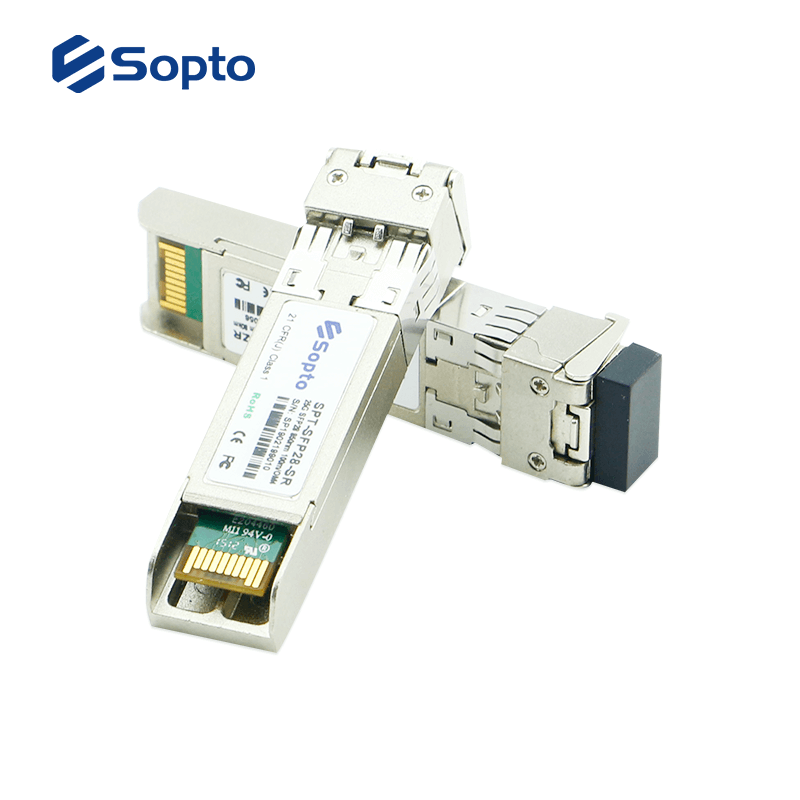

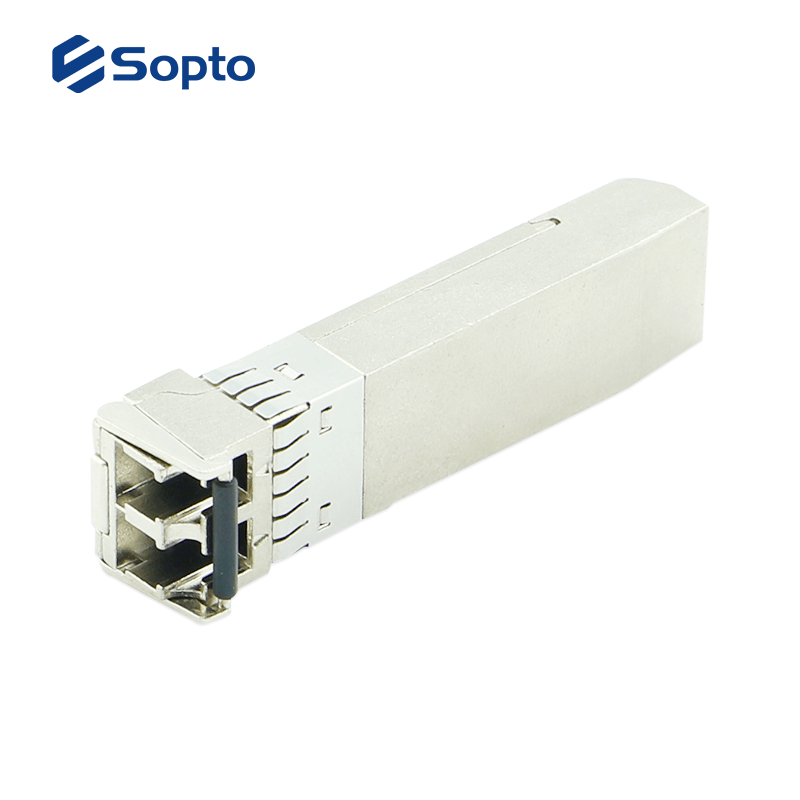

    SOPTO SFP28 optical transceivers are designed for use in 25GBASE data rate over multimode or single model fiber. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.SFP28 is a 25GBASE interface which has evolved from 100 Gigabit Ethernet, which is typically implemented with 4 25 Gbit/s data lanes. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us
  • ● RoHS-6 compliant

    ● Compliant with SFF-8472

    ● Built-in digital diagnostic functions

    ● Up to 25.78Gb/s bi-directional data links

    ● Operating Case Temperature: Standard: 0~70°C;

    ● Cost effective SFP28 solution, enables higher port densities and greater bandwidth

    ● Transmission distance up to 100m on MMF OM4 and 10km over SMF

    ● Advanced firmware allows customer system encryption information to be stored in transceiver


    P/NDescriptionDetails

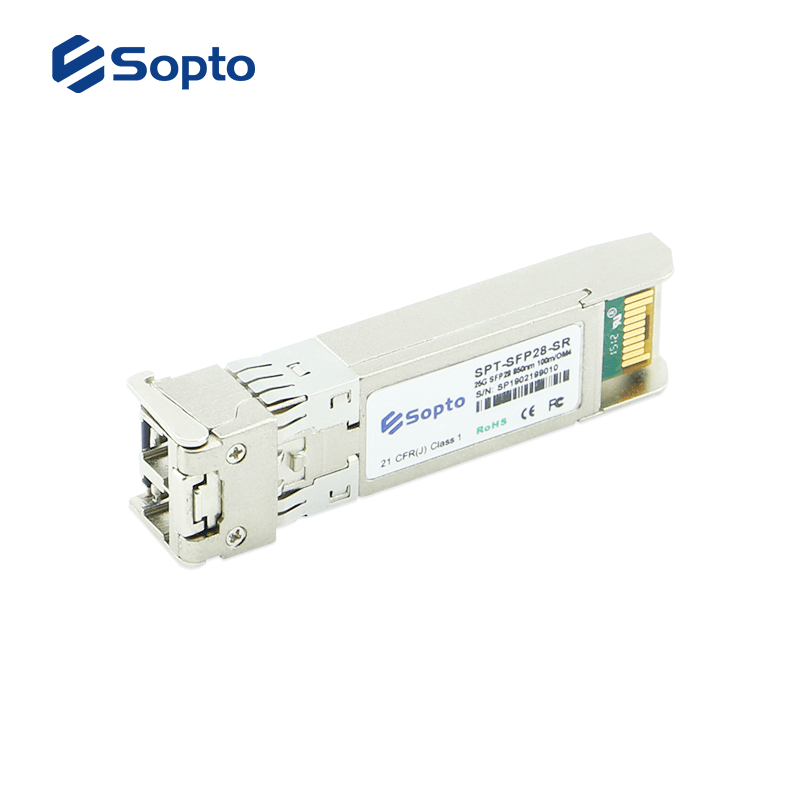

    SPT-SFP28-SR25.78Gbps, 850nm SFP28 SR 100m, 0ºC ~+70ºC, Duplex LC, DDM

    PDF

    SPT-SFP28-LR25.78Gbps, 1310nm SFP28 LR 10km, 0ºC ~+70ºC, MPO/MTP, DDM

    PDF


    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system,the requirements of European CE, RoHs

    transceiver certificate.png

    ● 25GBASE-SR/LR Ethernet

    ● High-speed storage area networks

    ● Computer cluster cross-connect

    ● Custom high-speed data pipes

    ● Inter Rack Connection


    Related Articles

    ●  Single Mode Fiber Transceivers

    ●  What is the Basic Principle of an Optical Module

    ●  Fiber Optic Transceiver Module's Selection and Use Skills

    ●  Introduction to common package types of optical modules


    PN

    Data Rate(Gbps)

    Distance

    Fiber

    Output Power(dBm)

    Sensitivity(dBm)

    Interface

    Temp.

    DDM

    SPT-SFP28-SR

    25

    70m/OM3
    100m/OM4

    MM

    -8.42.4

    -9.5

    Duplex LC

    0 to 70℃

    D

    SPT-SFP28-LR

    25

    10km

    MM

    -1.52

    -13

    MPO/MTP

    0 to 70℃

    D
