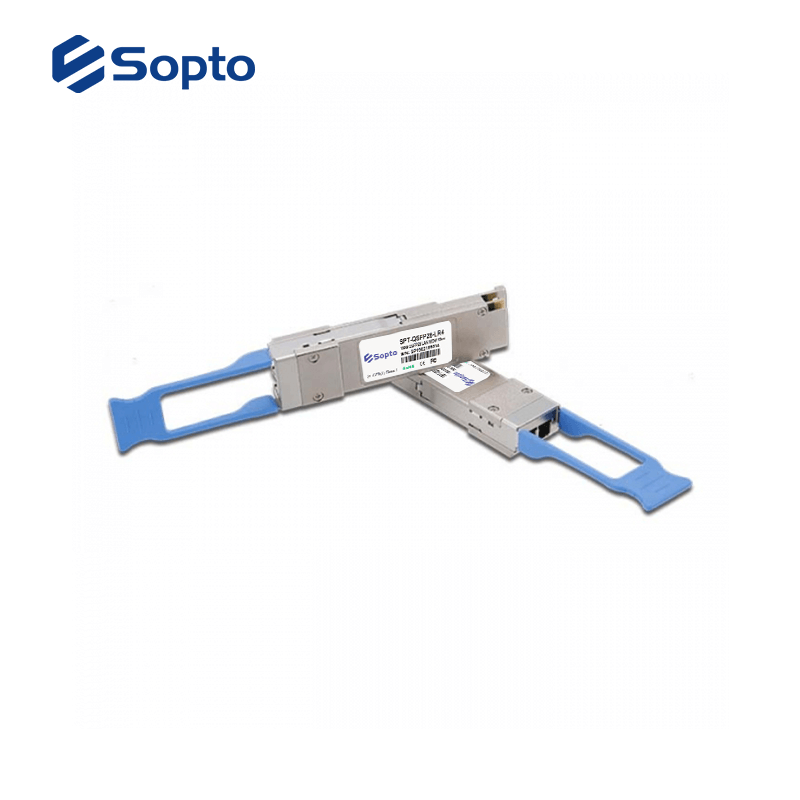

    SOPTO’s QSFP28 SR4 / QSFP28 100G IR4 / 100GBASE-LR4 QSFP28 Optical transceiver module are designed for use in 100 Gigabit Ethernet links. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 SR4/LR4 module receptacle. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us
  • ● Single +3.3V power supply

    ● 4 independent full-duplex channels

    ● Hot Pluggable QSFP form factor

    ● Maximum power consumption 3.5W

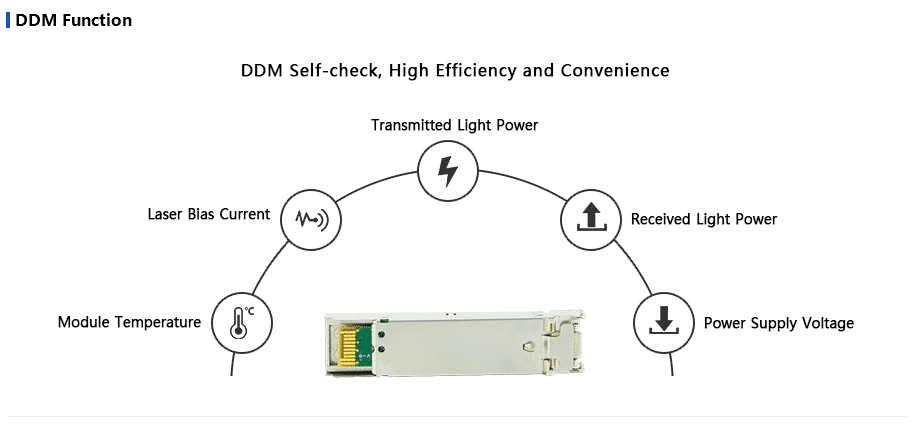

    ● Built-in digital diagnostic functions

    ● Operating Case Temperature: Standard: 0~70°C

    ● Up to 28Gb/s data rate per channel, Up to 112Gb/s aggregate bit rates

    ● Transmission distance up to 100m on MMF OM4 and 40km over SMF


    Compliant

    ● RoHS-6

    ● QSFP28 MSA

    ● IEEE 802.3 100GBASE-SR4/LR4 or 100G CWDM4 etc


    PN

    Data Rate (Gbps)

    Distance

    Fiber

    Output Power(dBm)

    Sensitivity

    (dBm)

    Interface

    PDF

    QSFP28-SR4

    103/112

    100m/OM4

    MM

    -6~3

    -10

    MPO/MTP

    MSR4.pdf

    QSFP28-MIR4

    103

    2km

    SM

    -6~2

    -11

    MPO/MTP

    MIR4.pdf

    QSFP28-IR4

    103

    2km

    SM

    -4~2

    -10

    Duplex LC

    IR4.pdf

    QSFP28-LR4

    103/112

    10km

    SM

               -0.5~4

    -10

    Duplex LC

    LR4.pdf


    sfp quality.pngsfp features.pngsfp ddm function.pngsfp test.pngsfp quality certificate.png

    All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.

    If you want to know more about the exact information of the specified transceiver or get price, please contact us.



    ● Rack to Rack

    ● Data Center

    ● Infiniband QDR, DDR and SDR application

    ● 100G Ethernet


    Related Articles

    ● Difference between QSFP28 PSM4, QSFP28 SR4 and QSFP28 LR4

    ● Fiber Optic Transceiver Module's Selection and Use Skills

    ● Introduction to common package types of optical modules

    PN

    Data Rate

    (Gbps)

    Distance

    Fiber

    Output Power

    (dBm)

    Sensitivity

    (dBm)

    Interface

    Temp.

    DDM

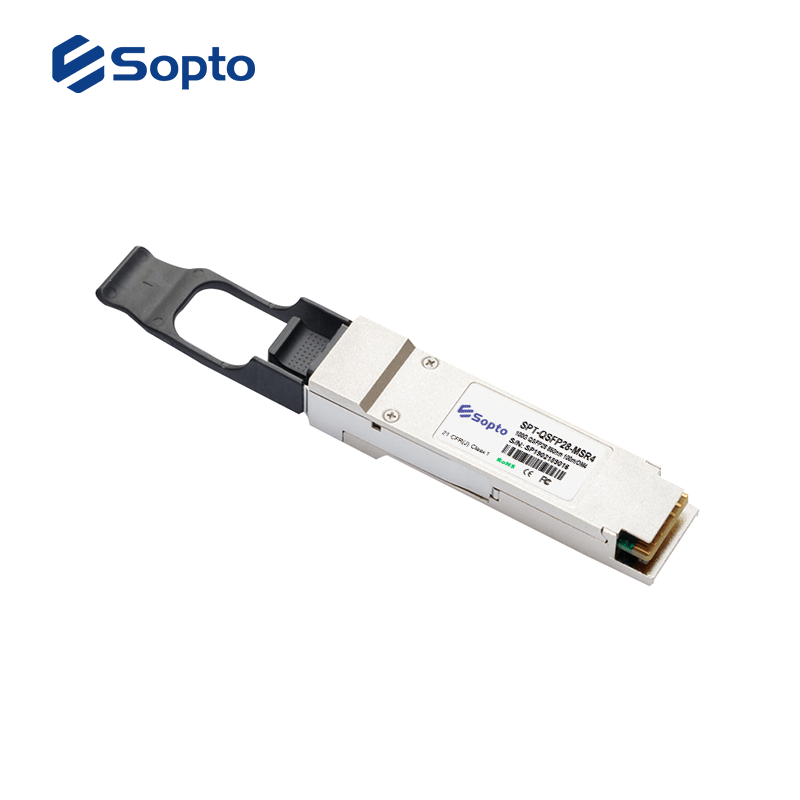

    SPT-QSFP28-MSR4

    103/112

    100m/OM4

    MM

    -6~3

    -10

    MPO/MTP

    0 to 70℃

    D

    SPT-QSFP28-MIR4

    103

    2km

    SM

    -6~2

    -11

    MPO/MTP

    0 to 70℃

    D

    SPT-QSFP28-IR4

    103

    2km

    SM

    -4~2

    -10

    Duplex LC

    0 to 70℃

    D

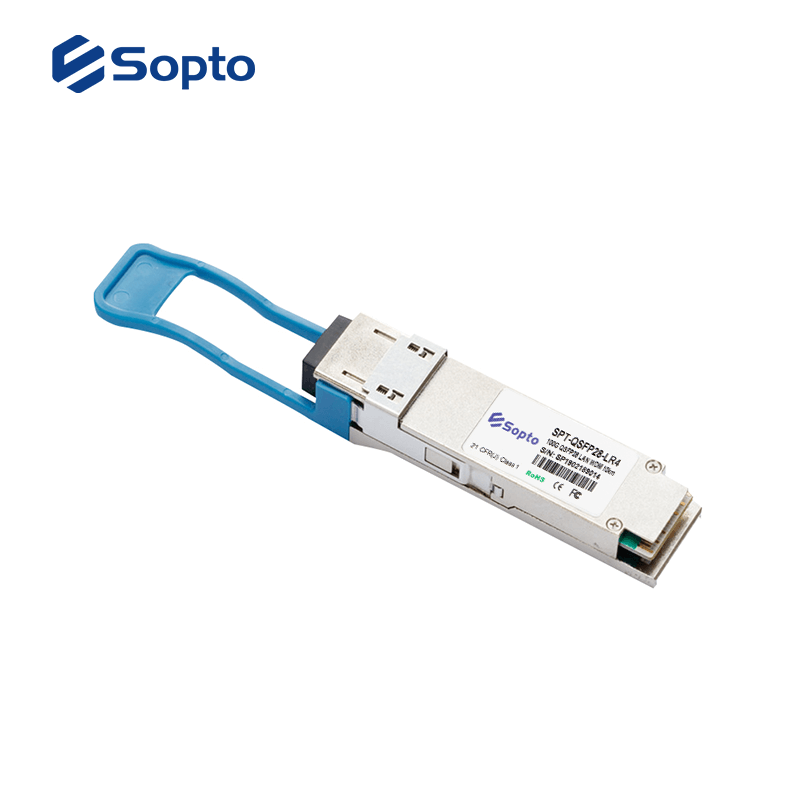

    SPT-QSFP28-LR4

    103/112

    10km

    SM

    -0.5~4

    -10

    Duplex LC

    0 to 70℃

    D

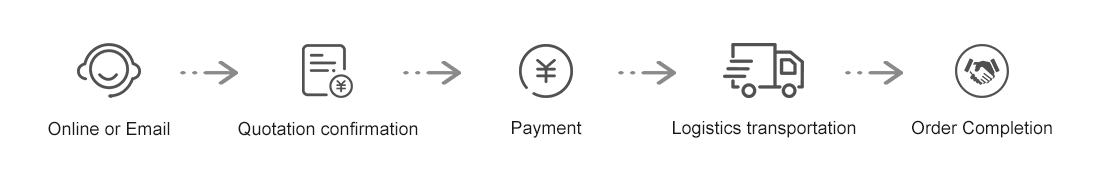

    Transaction Process
