  • Mechanical Splicer Mechanical Splicer

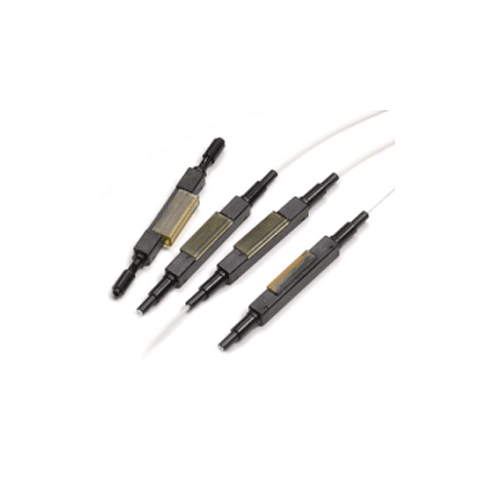

  • Mechanical Splicer

    The terminal of the cable can be used in two technologies: welding and cold bonding. The fiber cold connector is used when two pigtails are docked. The main component inside is a precision v-groove. After the two pigtails are used, the cold joints are used to realize the docking of the two pigtails. He is simpler and faster to operate, saving time than welding with a fusion splicer.
  • Contact Us
  • ● Non-pre-embedded fiber structure

    ● The reliability of fiber clamping is very good

    ● Good stability and low insertion loss

    ●  Optical fiber quick-connect connector online tensile force has no effect on connection loss

    ● The use cost is very low, the installation speed is very fast


    SPMS-A



    Applicable for

    φ0.25 mm &φ0.90 mm fiber

    Size

    45*4.2*4.7mm

    Optical fiber diameter

    125μm ( 652 & 657 )

    Tight buffer diameter

    250μm & 900μm

    Applicable mode

    single & multimode

    Operation time

    about 10s (without fiber cut)

    Insert loss

    ≤ 0. 25 dB1310nm & 1550nm )

    Return loss

    ≤ -45dB

    Fastening strength of naked fiber

    >5 N

    Clamping force of fiber with tight buffer

    >8 N

    Using temperature

    -40 - +75 C

    Reusability (10 times)

    IL ≤ 0.2dB  RL ≤ 5dB

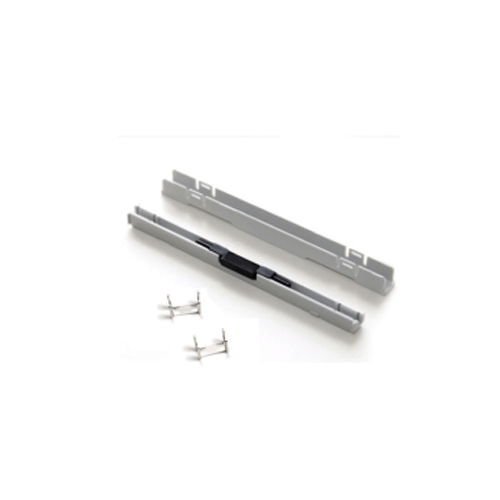

    SPMS-B

    Applicable for

    3.1 x 2.0 mm drop cable

    Size

    90*7*8mm

    Optical fiber diameter

    125μm ( 657A & 657B )

    Tight buffer diameter

    250μm & 900μm

    Applicable mode

    single & multimode

    Operation time

    about 30s (without fiber cut)

    Insert loss

    ≤ 0.25dB1310nm & 1550nm)

    Return loss

    ≤ -45dB

    Success rate

    >98%

    Reusability times

    >10times

    Fastening strength of naked fiber

    >5 N

    Clamping force of fiber with tight buffer

    >8 N

    Tensile strength

    >50 N

    Using temperature

    -40 - +75 C

    On-line tensile strength)

    IL ≤ 0.2dB

    Mechanical durability (500 times)

    IL ≤ 0.2dB

    Drop off test ( 4 meters high, cement floor, three directions)

    IL ≤ 0.2dB






    ● Optical line distributing frame

    ● Fiber-optical network system

    ● Hi-speed fiber-optical transmission system



    Part Number

    Product Description

    SPMS-A

    Fiber Optic Mechanical   Splice  applied to connect φ0.25--φ0.9   fiber/cable

    SPMS-B

    Fiber Optic Mechanical Splice   applicable for connecting 2.0X3.0mm drop cable
