  • FTTH Drop Patch Cords

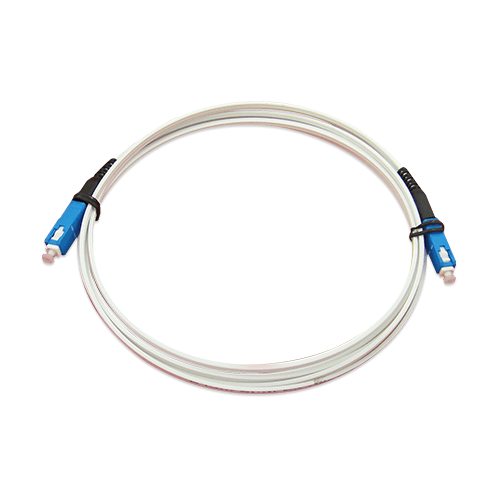

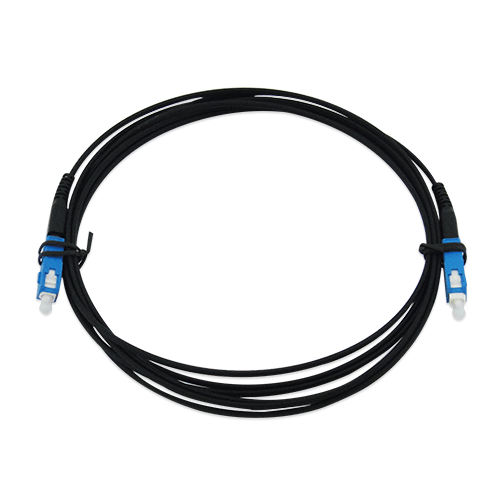

    FTTH Drop Cable patch cords have been widely applied in FTTX. It can also be used for short distance outdoor connections. SOPTO can supply FTTH drop cable patch cords which are made from standard FTTH drop cables. The FTTH drop cable patch cords are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters.
  • Contact Us
  • ● Indoor Cabling Bow-Type GJXH,GJXFH,GJXV,GJXFV optional

    ● Outdoor Cabling Bow-Type GJYXFCH,GJYXCH,GJYXCV,GJYXFCV optional

    ● UPC and APC available for the connectors

    ● G.652D,G.657A1,G.657A2 or MM optional

    ● 1/2/4 more cores are available

    ● Push/pull mating for quick installation

    ● High density and compact size

    ● High return loss

    ● Loss insertion loss


     Specifications:

    ● End Face Type: PC/APC/UPC/Plat Polish

    ● Connector Type: FC/SC/LC/ST/ MTRJ/ DIN/E2000

    ● Operating Wavelength: 850nm/1310nm/1550nm

    ● Length: 0.5m/1m/2m/3m/5m/7m/12m or customer specified

    ● Insertion loss: ≤0.3dB

    ● Return loss: ≥35dB

    ● Interchangeability: ≤0.2dB

    ● Repeatability: ≤0.2dB

    ● Insert-pull test: 100times, 0.3dB

    ● Fiber Diameters: 9/125µm SM; 62.5/125/µm, 50/125µm MM

    ● Fiber Type: SM, MM, OM1, OM2, OM3, OM4, duplex, simplex

    ● Material Feature: PVC/LSZH

    ● Storage Temperature: -40~+85°C

    ● Operating Temperature: -25~+85°C

    ● Storage Humidity: 95%RH (Non-Packaging)

    Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs





    ● FTTH

    ● LAN

    ● Telecommunication Network



    Ordering Info. for FTTH Drop Cable patch cords

    Part NumberSPP - GJXH - SC - FCUU –   2D5H

                                   1           2    3   4 5     67   8 9

    Product DescriptionPatch Cord   GJXH Duplex 2×SC/UPC  2× SC/UPC   G.652D 5M length LSZH

    1 - Type

    GJXH,GJXFH,GJXV,GJXFV,GJYXFCH,GJYXCH,GJYXCV,GJYXFCV etc

    2 - Connector A

    LC SC FC ST etc

    3 - Connector B

    LC SC FC ST etc

    4 – End face A

    U:UPC   polish;  P:PC polish;  A:APC polish

    5 – Endface B

    U:UPC   polish;  P:PC polish;  A:APC polish

    6 - Fiber Count

    1: Simplex;    2: Duplex

    7 - Fiber Mode

    M1: OM1; M2: OM2;  M3: OM3;    M3H:OM3(300);  M4: OM4;  D: G.652D; A1: G657.A1

    8 - Length

    5 : Cable total length 5M ;  etc

    9 - Cable Jacket Materials

    V: PVC; H:LSZH;

    Cable Jacket Color

    DefaultBlack
