    An aerial fiber optical cable is a fiber optic cable that is used on a pole. The aerial fiber optical cable laying method can utilize the original overhead open line pole to save construction costs and shorten the construction period. It is hung on the pole and is required to adapt to various natural environments. It is divided into hanging wire type, self-supporting type and non-self-supporting type.
  • Contact Us
  • ● 2 ~ 288 cores

    ● PE jacket with good resistance to ultraviolet radiation,the AT jacket can withstand high voltage induction field strong electric corrosion

    ● Figure‘8’Self-Supporting optical cable and ADSS optical cable

    ● Steel wire/FRP as strength member.

    ● Loose-tube twisted single sheath or central tube structure

    ● Wrinkled steel belt armored for non-self-supporting type aerial fiber optical cable

    ● High tensile steel strand wire for self-supporting type aerial fiber optical cable

    ● Loose sleeve material with good hydrolysis resistance and high strength;

    ● Compact structure,excellent waterproof performance, excellent mechanical performance and temperature performance

    ● Bunched or ribbon fiber

    ● SM (G.652D, G.655, G.657.A1) and MM (OM1, OM2, OM3, OM4) are available;

    ● PE, LSZH outer jacket material optional

    ● AT outer jacket for ADSS


    Hot Model




    ADSS



    GYXTW




    GYTC8A



    GYTC8S




    GYFTC8A53



    GYFTC8Y53



    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC

    certificate .png


    ● Long-distance backbone network

    ● Urban ring network

    ● Access Network, FTTX

    ● Relay between communication machine rooms

    ● Building cable in integrated wiring


    Related Articles

    ●  What is the armored fiber optic cable

    ●  Optical Fiber and Optical Fiber Classification

    ●  What is Principle of Optical Fiber Communication


     Cable Type

     Product Description

     Application

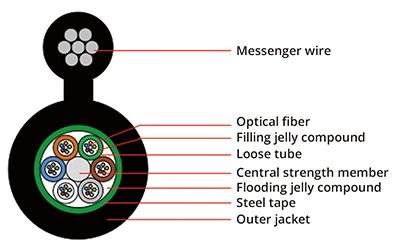

     GYTC8S

    Figure‘8’Self-Supporting optical cable , Metal strength member;   Steel-polyethylene adhesive jacket

     Aerial

     GYTS

    Outdoor optical cable , Metal strength member; Steel-polyethylene   adhesive jacket

     Aerial

     GYDTS

    Outdoor optical cable , Optical fiber ribbon, Metal strength   member; Steel-polyethylene adhesive jacket

     Aerial

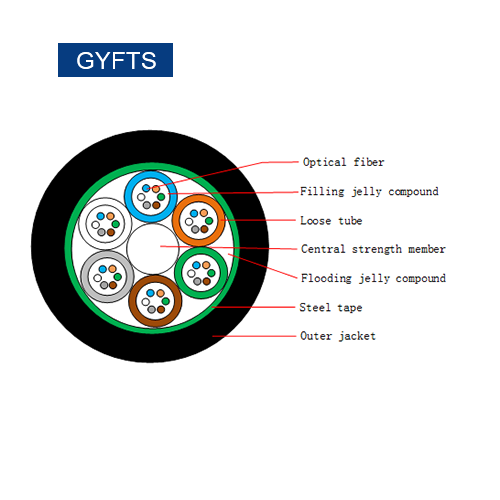

     GYFTS

    Outdoor optical cable ,Non-metal strength member ;   Steel-polyethylene adhesive outer jacket

     Aerial

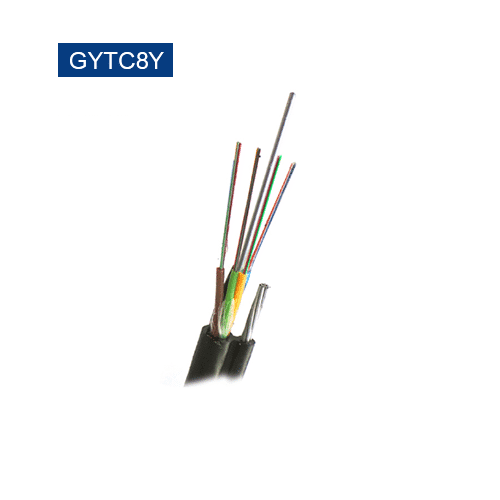

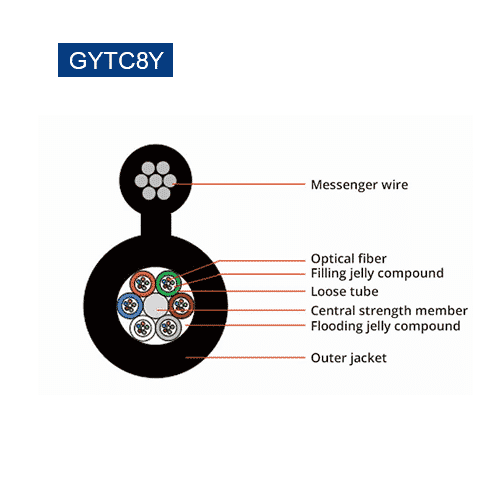

     GYTC8Y

    Figure‘8’Self-Supporting optical cable , Metal strength member; PE   jacket

     Aerial

     GYXTC8Y

    Figure‘8’Self-Supporting optical cable; Central tube structure;   Metal strength member; PE jacket;

     Aerial

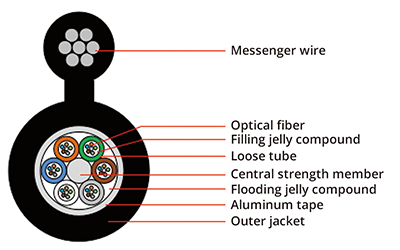

     GYTC8A

    Figure‘8’Self-Supporting optical cable , Metal strength member ,   Aluminum-polyethylene adhesive jacket

     Aerial

     GYFTC8A

    Figure‘8’Self-Supporting optical cable , Non-metal strength member, Aluminum-polyethylene adhesive jacket

     Aerial

     GYTC8A53

    Figure‘8’Self-Supporting optical cable , Metal strength member, Aluminum-polyethylene adhesive inner jacket;

    Steel-polyethylene adhesive outer jacket

     Aerial

    GYFTC8A53

    Figure‘8’Self-Supporting optical cable ,Non-metal strength member,Aluminum-polyethylene adhesive inner jacket,

    Steel-polyethylene adhesive outer jacket

     Aerial

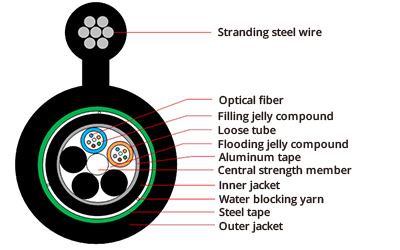

    GYFTC8Y53

    Figure‘8’Self-Supporting optical cable , Non-metal strength member; PE inner jacket;

    Steel-polyethylene adhesive outer   jacket

     Aerial

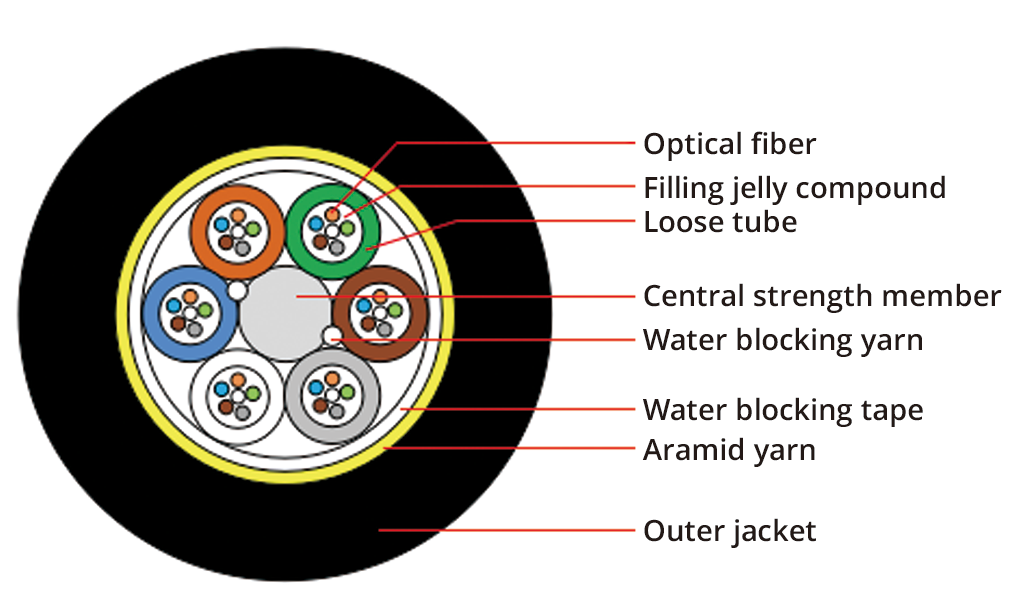

    ADSS

    Single or Double protector All dielectric Self-Supporting optical cable , Non-metal strength member; PE inner

    jacket; PE outer jacket; 50~100M span

     Aerial

    GYXTC8S

    Figure‘8’Self-Supporting optical cable,Central tube structure; Metal strength member; Steel-polyethylene adhesive jacket

     Aerial

    GYTC8Y53

    Figure‘8’Self-Supporting optical cable,Metal strength member, PE inner jacket,

    Steel-polyethylene adhesive outer  jacket

     Aerial

    GYFC8Y

    Figure‘8’Self-Supporting optical cable ,Non-metal strength member ,PE jacket

     Aerial

    GYTZS

    Outdoor optical cable,Metal strength member,Steel-LSZH adhesive jacket

     Aerial

    GYDTZS

    Outdoor optical cable,Optical fiber ribbon,Metal strength member,Steel-LSZH adhesive jacket

     Aerial

    GYFY

    All dielectric reinforced optical,cable,Non-metal strength member,Glass yarn strength,member,PE outer jacket

    Aerial or Duct

    GYFTY

    Outdoor optical cable ,Non-metal strength member ; PE jacket

    Aerial or Duct

    GYFXY

    Outdoor optical cable ,Central tube structure;Non-metal strength member,PE jacket

    Aerial or Duct

    GYXS

    Outdoor optical cable ,Central tube  structure;Single steel wire armoring; Steel-polyethylene adhesive outer jacket

    Aerial or Duct

    GYDXTW

    Outdoor optical cable ,Optical fiber   ribbon, Central tube structure;  Steel-polyethylene adhesive outer   jacket

    Aerial or Duct

    GYDFXY

    Outdoor optical cable ,Optical fiber ribbon,Central tube   structure;Non-metal strength member ; PE jacket

    Aerial or Duct

    GYFTZY63

    Outdoor optical cable , Non-metal strength member; HDPE inner jacket, Glass yarn strength member,

    LSZH Outer jacket

    Aerial or Duct

    GYFXZS

    Outdoor optical cable ,Central tube structure; Non-metal strength member ; Glass yarn strength member,Steel

    tapeLSZH  outer jacket

    Aerial or Duct

    GYFTZY

    Outdoor optical cable , Non-metal strength member; LSZH Outer jacket

    Aerial or Duct

    GYXTW

    Outdoor optical cable ,Metal strength   member; PE jacket with steel wire

    Aerial or Duct

    GYFTY73

    All dielectric reinforced optical cable ,Non-metal strength member;PE inner jacket; Glass yarn strength member ,

    PE outer jacket

    Aerial or

    Direct Buried

    GYFTZY63

    Outdoor optical cable , Non-metal strength member; HDPE inner jacket;   Glass yarn strength member ;

    LSZH Outer jacket

    Aerial or

    Direct Buried

    Notes:

    1.Flooding jelly compound default

    2.The relevant technical parameters can be adjusted according to the customers' demands;

    3.The block water way can be adjusted according to the customers' demands;

    4.The design flame resistance, anti-rodent, termite resistant cable according to the customers' demands
