  • Multi UTP POE Fiber Media Converter/POE Switch

    The 10/100/1000Mbps POE fiber switch provides IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the 2 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras.
  • Contact Us
  • ● 1 ~ 2 x SFP fiber port

    ● 2 ~8 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports

    ● RJ45 port support IEEE802.3af( IEEE802.3at optional)

    ● IEEE802.3/u/x compliant

    ● Conspicuous LED indicators for power/link diagnose/data

    ● Support Auto MDI/MDIX

    ● PoE power for each port is 15.4W for AF and 30W for AT


    ● LAN/WAN

    ● Access Control Systems

    ● 10/100/1000 Mbps Ethernet

    ● High Speed Computer Links


    Fast Ethernet Application

    fast ethernet application.png

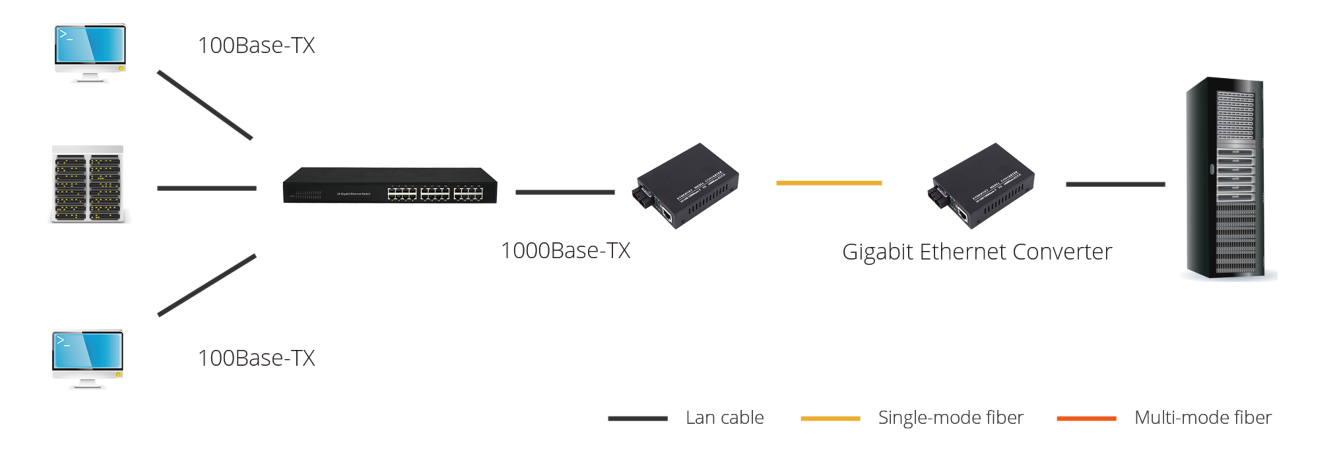

    Gigabit Ethernet Application

    gigabit ethernet application.png

    Part Number

    Fiber Port

    Fiber Port

    Rate(Mbps)

    Fiber Port

    No.

    RJ45 Rate

    (Mbps)

    RJ45 No.

    POE

    Function

    Power Supply

    Temp.

    SPM-EE14T2X-PX

    SFP slot

    1000

    1

    10/100/1000

    4

    PSE af

    External 220V AC

    0 ~ 50°C

    SPM-EE18T2X-PX

    SFP slot

    1000

    1

    10/100/1000

    8

    PSE af

    External 220V AC

    0 ~ 50°C

    SPM-EE24T2X-PX

    SFP slot

    1000

    2

    10/100/1000

    4

    PSE af

    External 220V AC

    0 ~ 50°C

    SPM-EE28T2X-PX

    SFP slot

    1000

    2

    10/100/1000

    8

    PSE af

    External 220V AC

    0 ~ 50°C

    SPS-TF8G1

    SFP slot

    100

    1

    10/100

    8

    PSE af/at

    External 220V AC

    0 ~ 50°C

    SPS-TG8G1

    SFP slot

    1000

    2

    10/100/1000

    8

    PSE af/at

    External 220V AC

    0 ~ 50°C

    SPS-TG8G2

    SFP slot

    1000

    2

    10/100/1000

    8

    PSE af/at

    External 220V AC

    0 ~ 50°C

    SPS-TG16G2

    SFP slot

    1000

    2

    10/100/1000

    16

    PSE af/at

    External 220V AC

    0 ~ 50°C

    SPS-TG24G2

    SFP slot

    1000

    2

    10/100/1000

    24

    PSE af/at

    External 220V AC

    0 ~ 50°C
