  • Copper SFP Copper SFP Copper SFP
  • 10/100/1000base t copper SFP

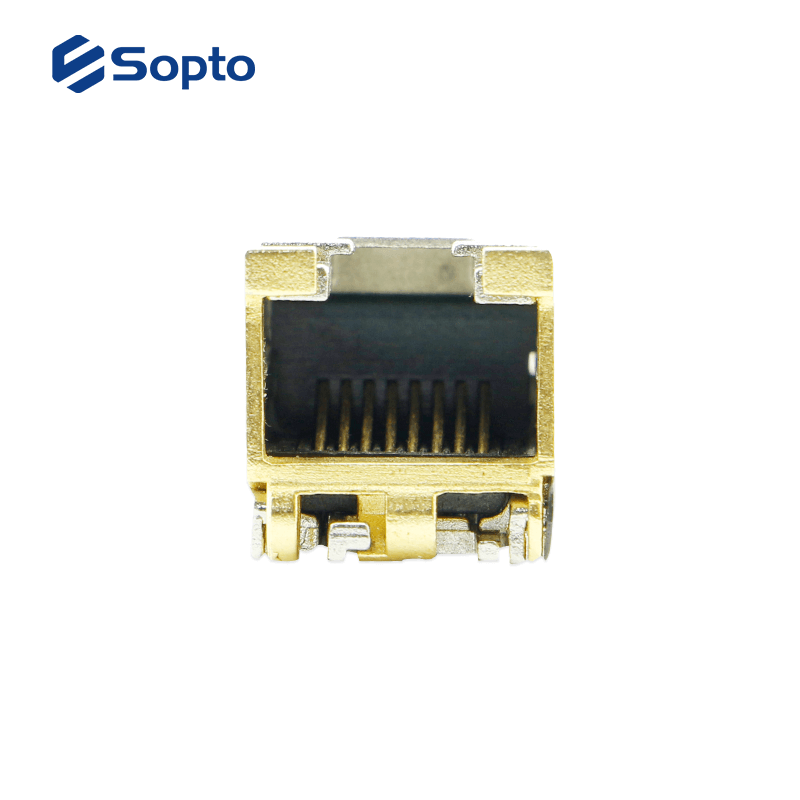

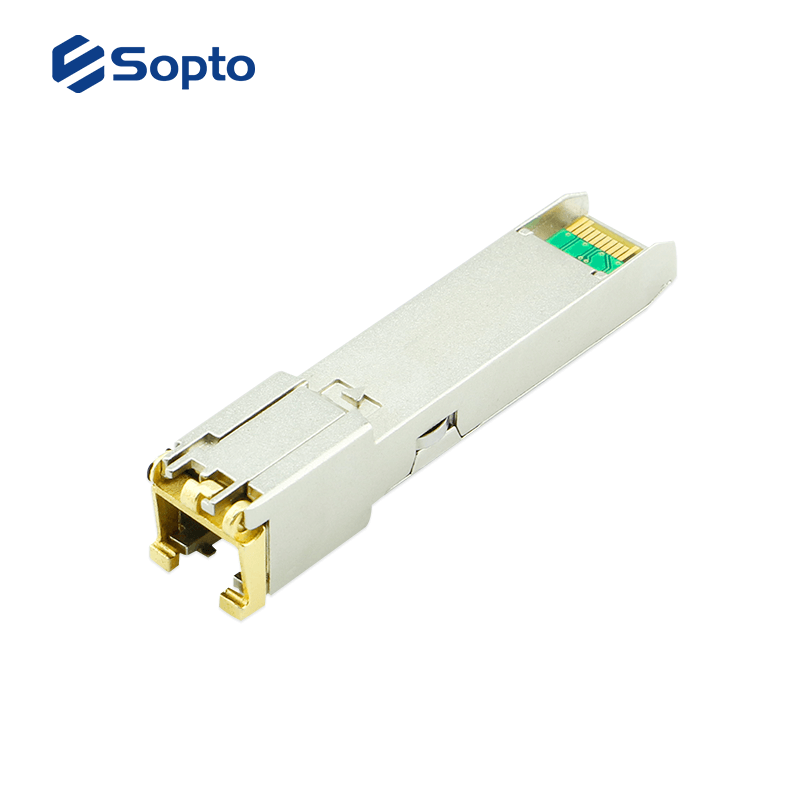

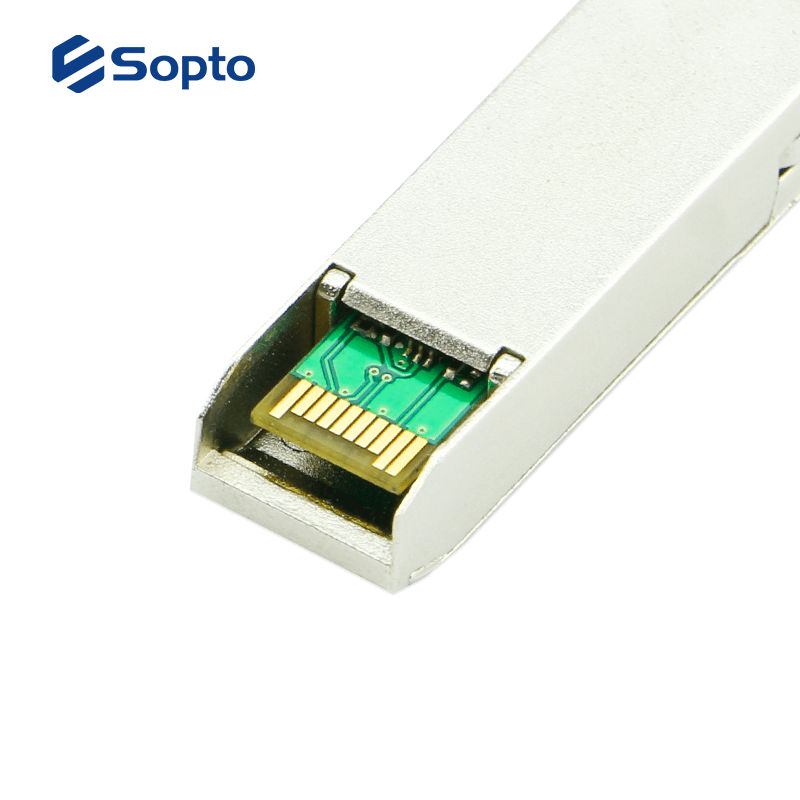

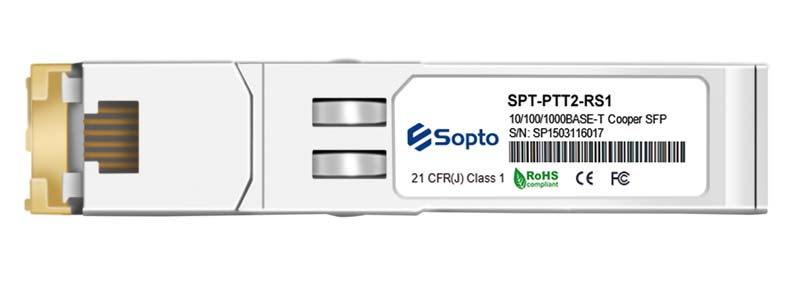

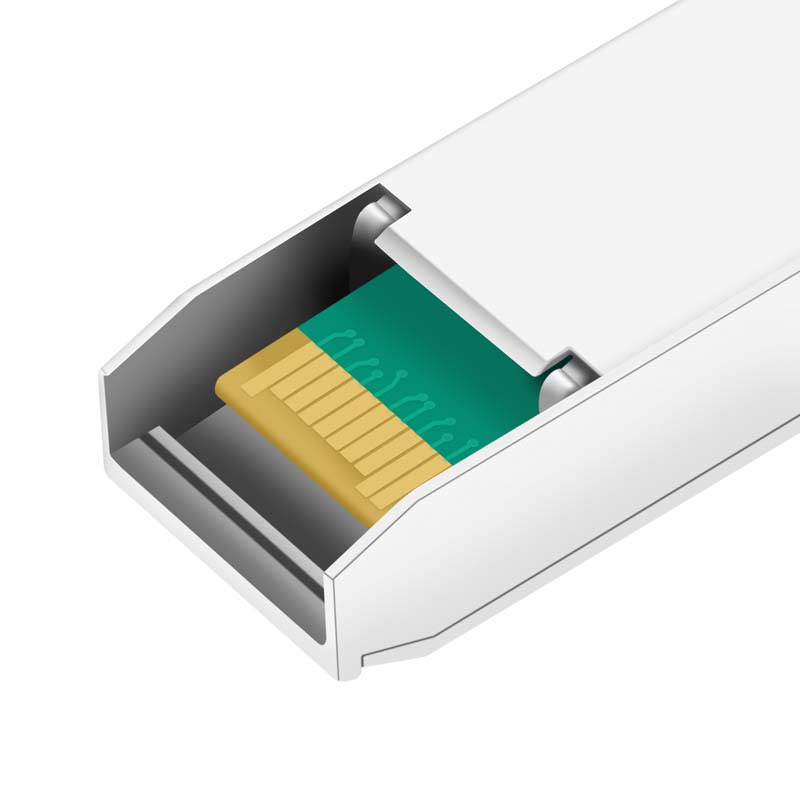

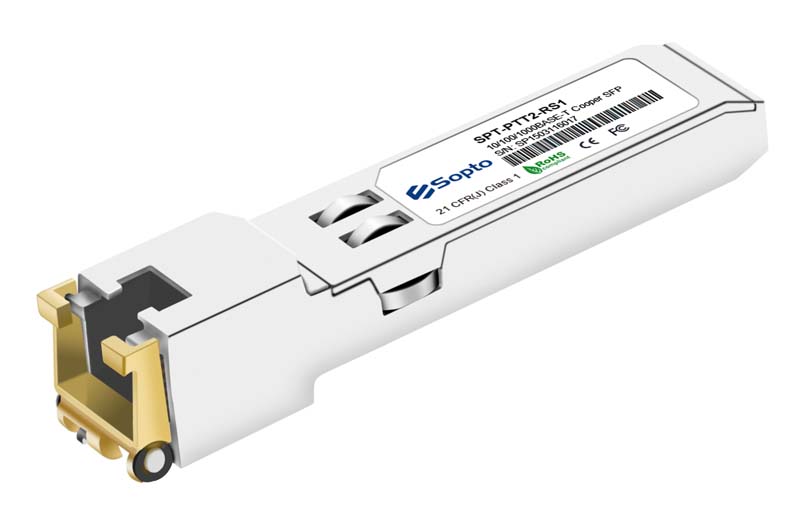

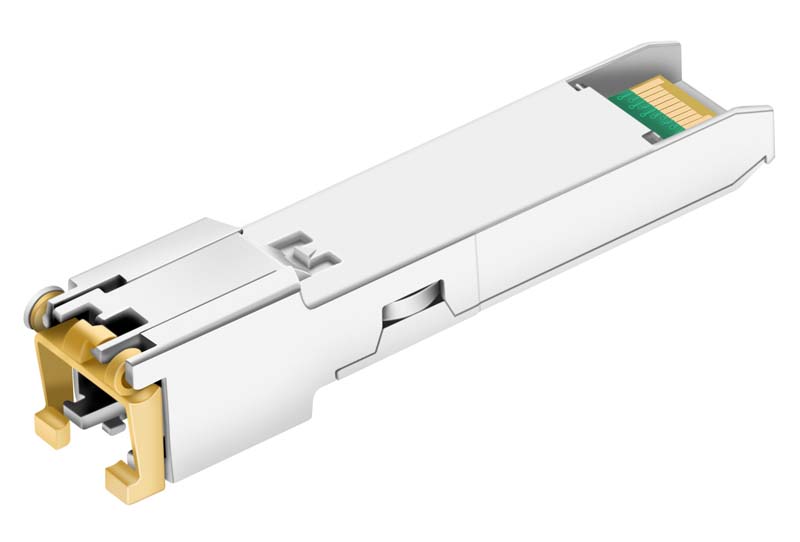

    SOPTO’s 10GBASE-T or 1000BASE-T or 100BASE-T or 10/100/1000BASE-T Auto-negotiation Copper SFP Transceiver can be installed into optical SFP slots enabling an optical Ethernet port (10Gbase-X/1000Base-X) to be converted into a copper Ethernet port (10GBASE-T /1000Base-T) either in the field or in production. Copper SFP Transceiver is also called RJ45 SFP Transceiver.
  • Contact Us
  • ● Hot-Pluggable SFP

    ● Compliant with SFP MSA

    ● Iompliant with EEE Std 802.3-2002

    ● Fully Metallic Enclosure for Low EMI

    ● Compact RJ-45 Connector Assembly

    ● Detailed Product Information in EEPROM

    ● Operating Case Temperature: Standard: 0~70°C

    ● Access to Physical Layer IC via 2-Wire Serial Bus

    ● Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T/100 BASE-T

    ● 10 Gigabit Ethernet over Cat 6a cable, Gigabit Ethernet Over UTP Cat5 Cable


    Sopto Model

    PNDescriptionDetails
    SPT-PTTX-RS110/100 /1000Mbps, 100m Transmission distance, RJ45 interfacePDF
    SPT-PTTG-RS110Gbase-t copper sfp, 30m Transmission distanceRJ45 interface

    PDF

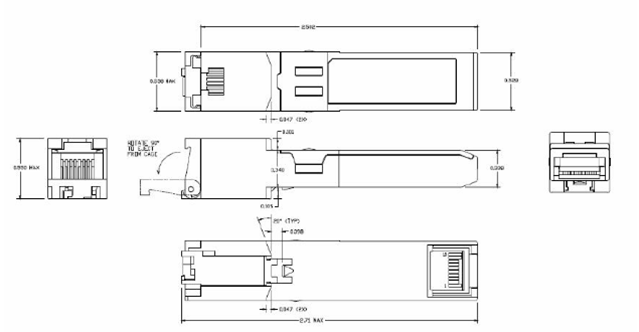

    Sopto SFP conforms to the mechanical specifications outlined in the SFP MSA1.The front portion of the SFP (part extending beyond the face plate of the host) is larger to accommodate theRJ-45 connector

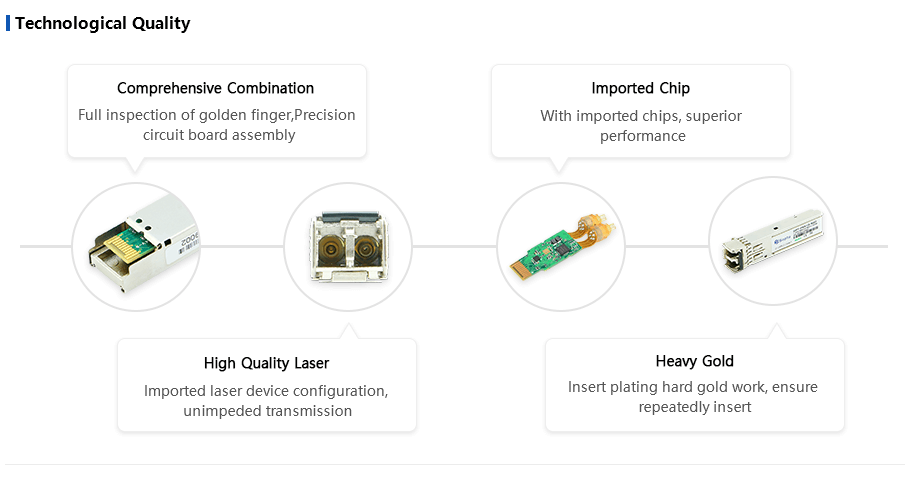

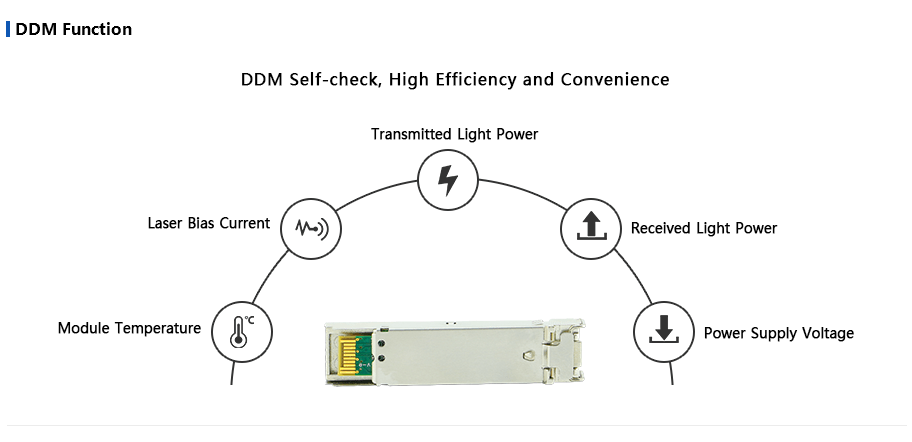

    sfp quality.pngsfp features.pngsfp ddm fuction.pngsfp test.pngsfp quality certification.png

    All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.

    If you want to know more about the exact information of the specified transceiver or get price, please contact us.



    Application

    ● 10/100/1000Base-T LAN

    ● Gigabit Ethernet

    ● Switch to Switch Interface

    ● Router/Server Interface


    Related Article

    1. What is 1000Base-SX SFP?

    2. 1000Base-SX SFP Transceiver Module MMF

    3. What is Copper SFP Transceiver Module?

    4. What is the 1000Base-T SFP transceiver modules?


    Sopto's 1000BASE-SX SFP Solutions

    1. GLC-SX-MM (Cisco compatible)

    GLC-SX-MM is 1000BASE-SX SFP fiber optic transceiver for MMF and it works at 850nm wavelength, the Cisco GLC-SX-MM SFP is compatible with IEEE 802.3z and could reach 550 meter working distance via 50/125 MMF, on 62.5/125 MMF it could reach 220 meters. GLC-SX-MM SFP is hot-swappable module that fit for Gigabit Ethernet port or slot and link the port with the network, GLC-SX-MM module is about 1.3 cm x 5.7 cm x 0.9 cm in dimension, and 75g in weight.

    2. SFP-GE-S (Cisco compatible)

    SFP-GE-S is a multimode type Cisco SFP transceiver. It is a 1000BASE-SX SFP transceiver with digital optical monitoring (DOM), fiting for both 50/125 or 62.5/125 MMF with the working wavelength at 850nm. The max distance for SFP-GE-S is 550 meters. The SFP-GE-S transceiver is for short wavelength applications, power budget is 7.5 dB. It uses dual LC fiber connector interface, with the size about 8.5 mm x 13.4 mm x 56.5 mm.

    3. J4858A (HP compatible)

    This HP compliant J4858A is a 1000BASE-SX SFP 850nm 550m transceiver module. The J4858A transceiver module provides a low cost high-performance connection. The J4858A is 100% compatible with all HP series switches and modules which support SFP transceivers.

    4. J4858B (HP compatible)

    This HP compliant J4858B is a 1000BASE-SX SFP 850nm 550m transceiver module. The J4858B transceiver module provides a low cost high-performance connection. The J4858B is 100% compatible with all HP series switches and modules which support SFP transceivers.

    5J4858C (HP compatible)

    6. A6515A (HP compatible)

    This HP compliant A6515A is a 1000BASE-SX SFP 850nm 550m transceiver module. The A6515A transceiver module provides a low cost high-performance connection. The A6515A is 100% compatible with all HP series switches and modules which support SFP transceivers.

    7. JX-SFP-1GE-SX (Juniper compatible)

    Juniper compatible JX-SFP-1GE-SX is a 1000BASE-SX SFP 850nm 550m transceiver.

    8. EX-SFP-1GE-SX (Juniper compatible)

    9. 320-2881 (Dell compatible)

    This Dell compliant 320-2881 is a 1000BASE-SX SFP 850nm 550m transceiver module. The 320-2881 transceiver module provides a low cost high-performance connection. The 320-2881 is 100% compatible with all Dell series switches and modules which support SFP transceivers.

    10. 790-10070 (Dell compatible)

    This Dell compliant 790-10070 is a 1000BASE-SX SFP 850nm 550m transceiver module.



    PN

    Data Rate

    Distance

    Interface

    Tep

    SPT-PTTG-RS1

    10Gbps

    30m

    RJ45

    0   to 70℃

    SPT-PTT1-RS1

    1000Mbps

    100m

    RJ45

    0   to 70℃

    SPT-PTT2-RS1

    10/100   /1000Mbps

    100m

    RJ45

    0   to 70℃

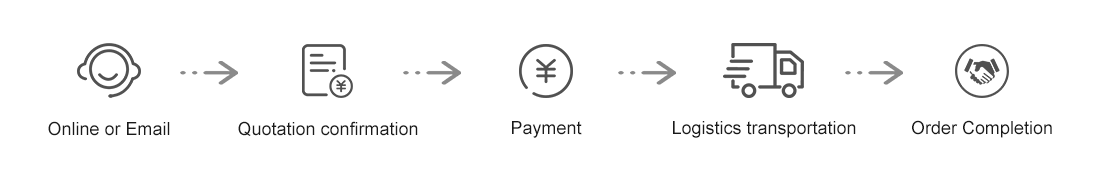

    Transaction Process

    Transaction Process.png

    Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order


    Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
