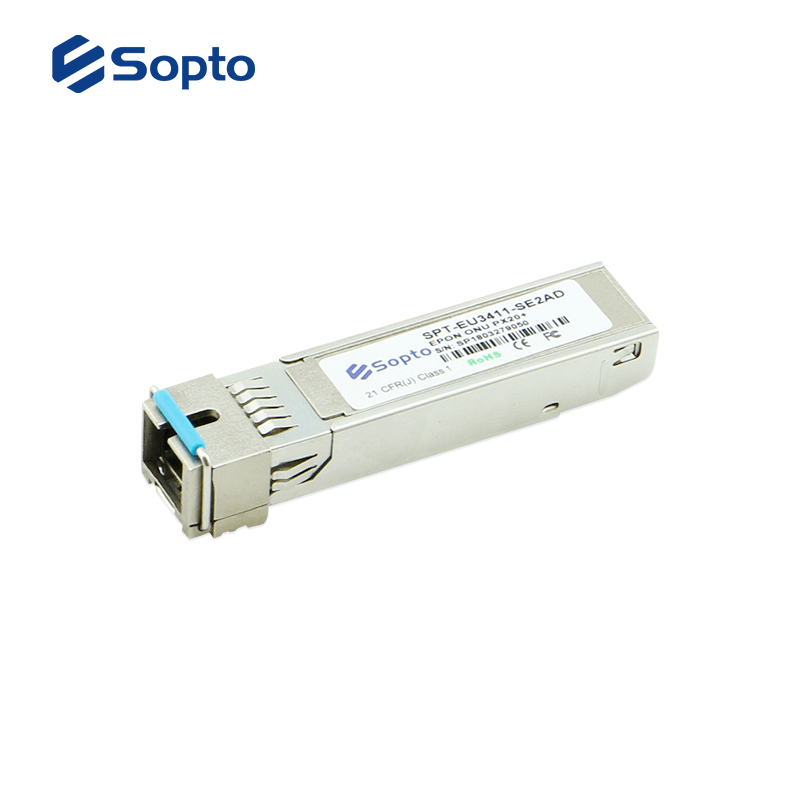

    SOPTO’s EPON SFP is a series of optical transceiver modules operating in Ethernet Passive Optical Networks (EPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with EPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 64 different lines in EPON. The Transmit and Receive signals operate on different wavelengths realizing bi-directional operation at 1490nm/1310nm wavelengths over a single fiber.
  • Contact Us
  • ● Built-in digital diagnostic functions

    ● Single +3.3 Power Supply, Hot-pluggable

    ● Up to 20km distance at 9/125µm G.652 SMF

    ● Operating Case Temperature: Standard: 0~70°C

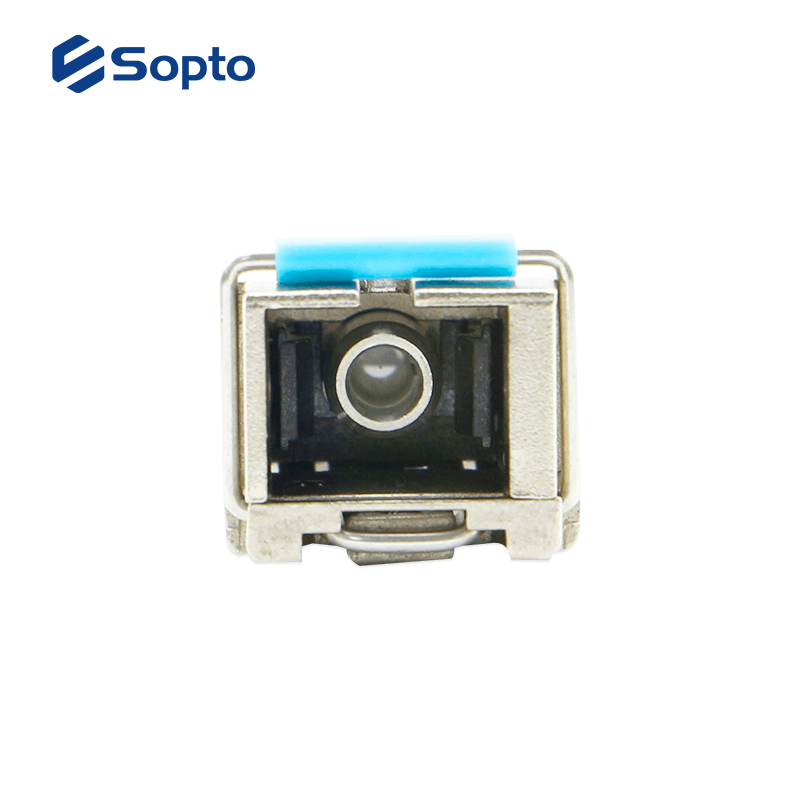

    ● SFP Package with SC Interface or Pigtailed, both ONU and OLT series

    ● Ethernet Passive Optical Networks (GEPON or EPON) IEEE 802.3ah standards have defined downstream data rates up to 1.25Gbps.


     P/NDescriptionDetails
     EPON ONUSFP
    SPT-EU3411-SE2AD

    EPON ONU SFP Transceiver 1310nmTx/1490nmRx 1.25G/1.25G SC Interface

    1000BASE-PX20+ with DDM  Commercial Temperature Burst Logic 0/1 Tx On , with TxSD

    EPON ONU SFP.pdf
     EPON OLT SFP
    SPT-ET4311-SE2AD

    Transceiver EPON OLT SFP 1490nm/1310nm 1.25G Tx/1.25G Rx SC Interface

    1000BASE-PX20+ with DDM Commercial Temperature

    EPON OLT SFP.pdf
    SPT-ET4311-SE2BD

    Transceiver EPON OLT SFP 1490nm/1310nm 1.25G Tx/1.25G Rx SC Interface

    1000BASE-PX20 with DDM Commercial Temperature

    SPT-ET4311-SE2CD

    Transceiver EPON OLT SFP 1490nm/1310nm 1.25G Tx/1.25G Rx SC Interface

    1000BASE-PX20++ with DDM Commercial Temperature


    Compliant

    ● SFP MSA and SFF-8472

    ●  1000BASE- PX20/PX20+/ PX20++

    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

    transceiver certificate.png

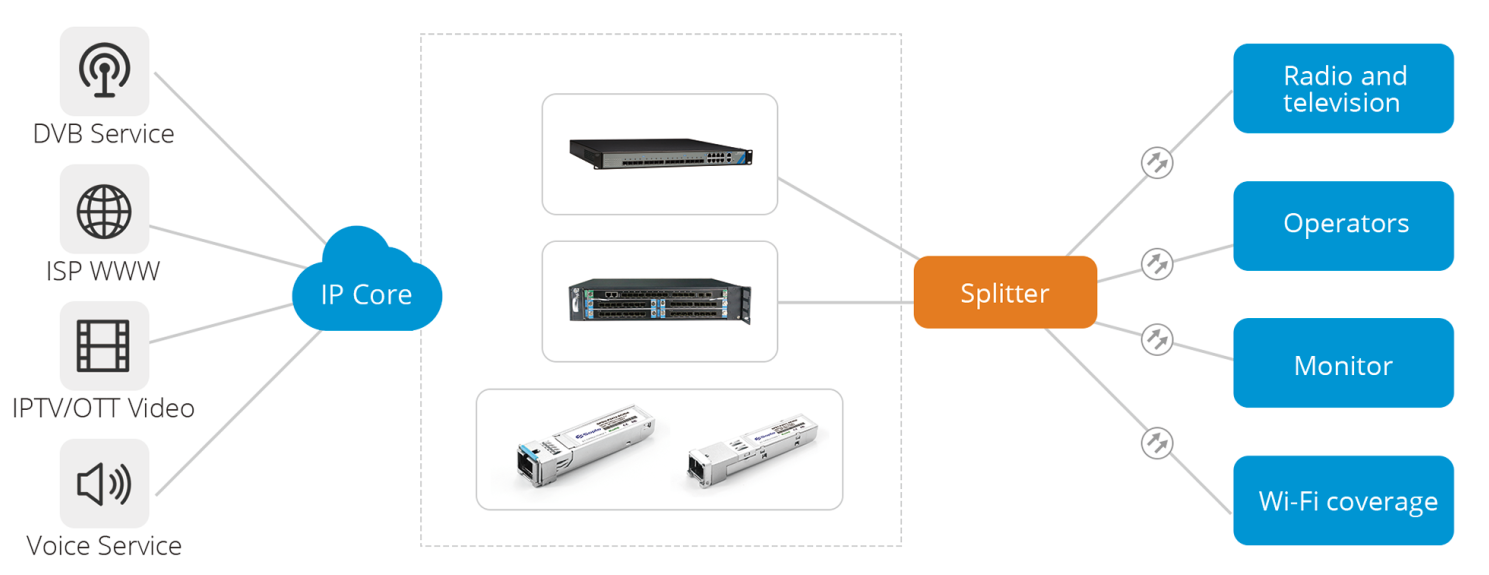

    ● EPON For P2MP Application


    PN

    Application

    Data Rate

    (Gbps)

    Distance

    Fiber

    Output Power

     (dBm)

    Sensitivity

    (dBm)

    Interface

    Temp.

    DDM

    SPT-ET4311-SE2BD

    PON ports of

    EPON OLT

    1.25/1.25

    PX20

    SM

    1.55

    -28

    Simplex SC

    0 to 70℃

    D

    SPT-ET4311-SE2AD

    PON ports of

    EPON OLT

    1.25/1.25

    PX20+

    SM

    38

    -30

    Simplex SC

    0 to 70℃

    D

    SPT-ET4311-SE2CD

    PON ports of

    EPON OLT

    1.25/1.25

    PX20++

    SM

    410

    -30

    Simplex SC

    0 to 70℃

    D

    SPT-EU3411-SE2AD

    PON ports of

    Some EPON ONU

    1.25/1.25

    PX20+

    SM

    0.55

    -28

    Simplex SC

    0 to 70℃

    D
