  • 1.55M~1.25G DWDM SFP 1.55M~1.25G DWDM SFP 1.55M~1.25G DWDM SFP 1.55M~1.25G DWDM SFP
  • 1.25G DWDM SFP

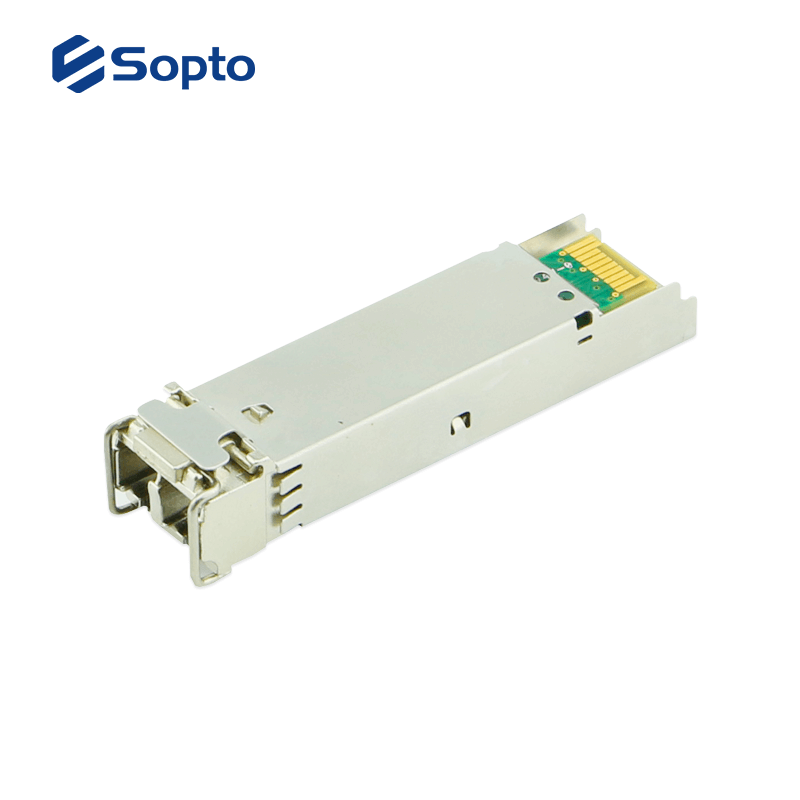

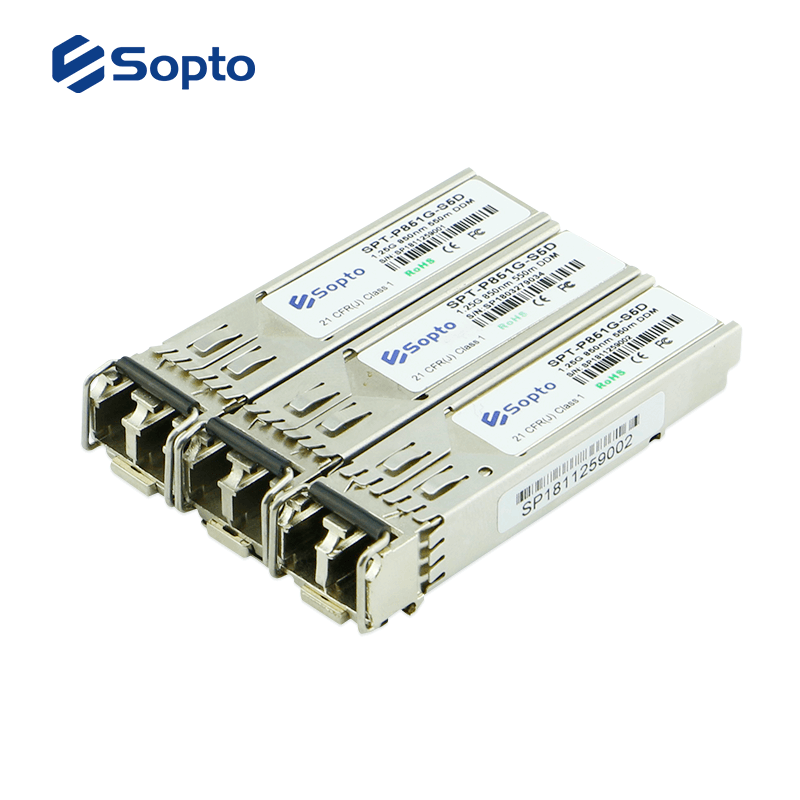

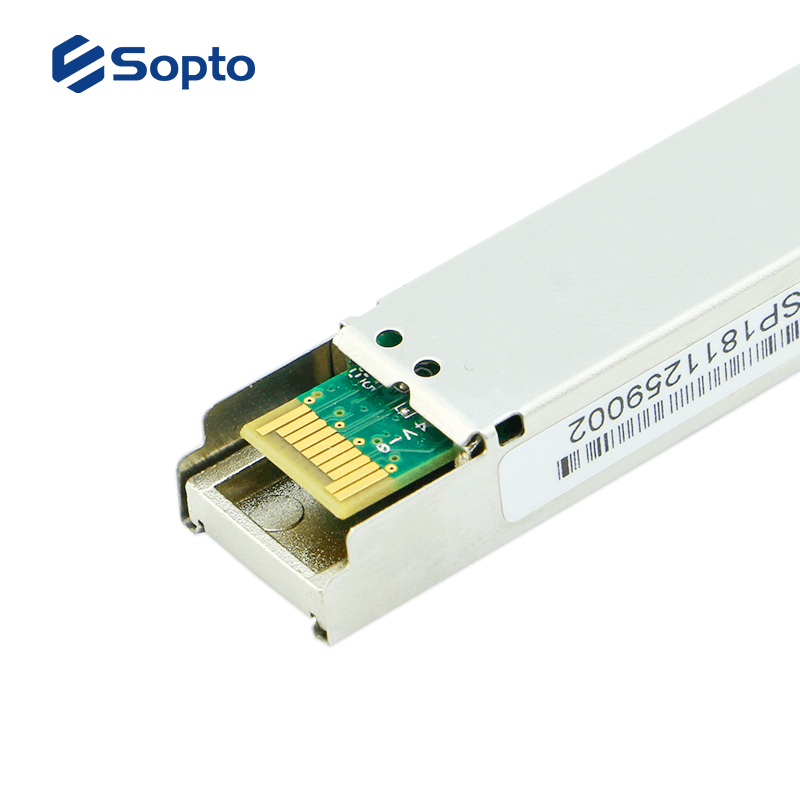

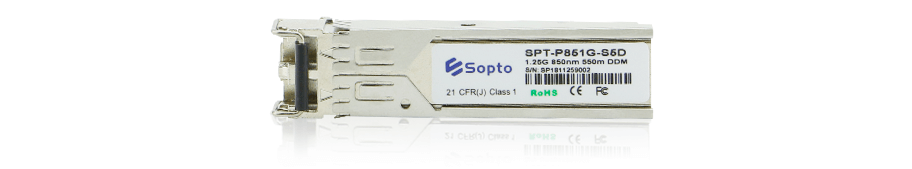

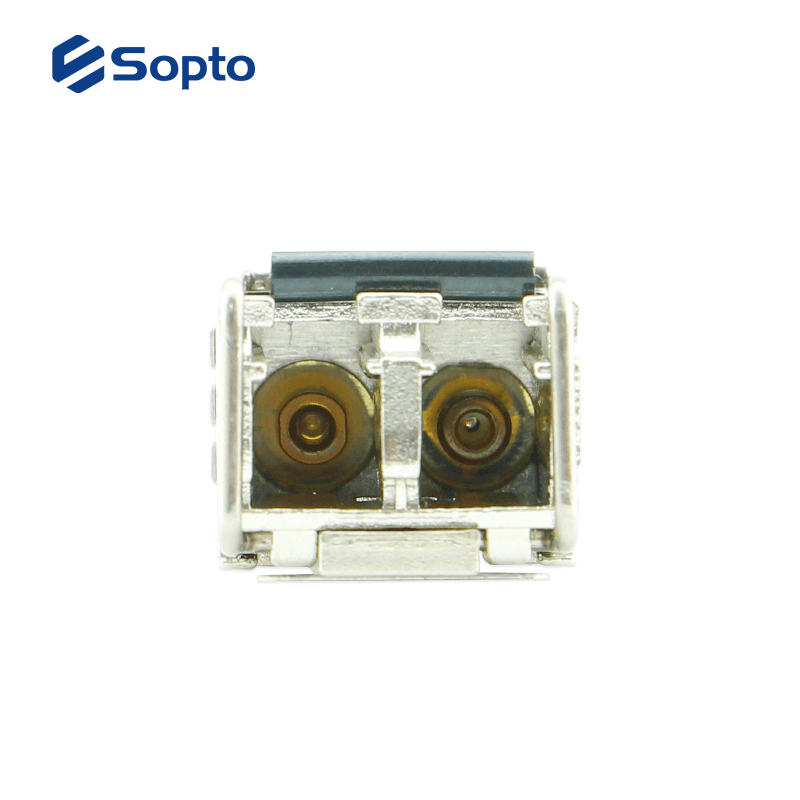

    SOPTO’s DWDM SFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over single-Mode Fiber (SMF). They are designed for use in Fast Ethernet, Gigabit Ethernet, 1G Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
  • Contact Us
  • ● RoHS-6  compliant

    ● Compliant with SFP MSA

    ● Compliant with  FC-PI 13.0

    ● Compliant with IEEE Std 802.3

    ● Single +3.3V power supply

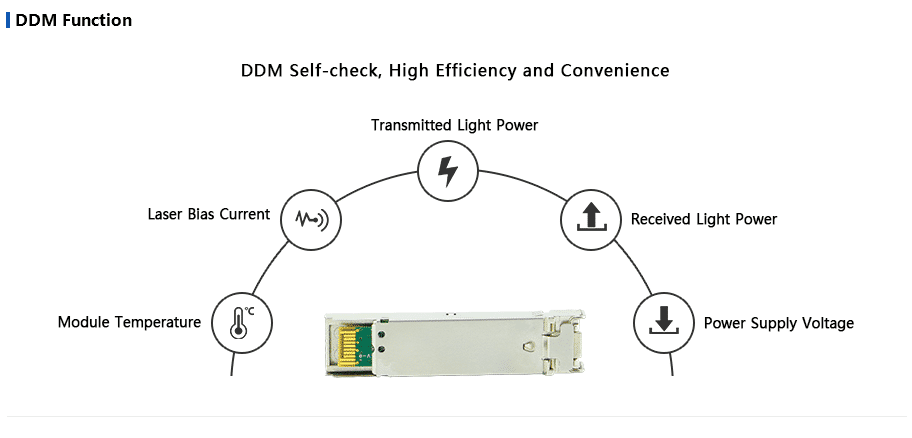

    ● Built-in digital diagnostic functions

    ● DWDM 100GHz ITU Grid C Band Available

    ● Transmission distance up to 120km over SMF

    ● Supports data rates from 100Mb/s to 1.25Gb/s

    ● Can be used with single fiber DWDM system or dual fiber DWDM system

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C



    sfp features.pngsfp quality.pngsfp ddm function.pngsfp test.pngsfp quality certificate.png



    ● Fast Ethernet

    ● Gigabit Ethernet

    ● 1X Fibre Channel

    ● SONET/SDH OC-3/STM-1

    ● SONET/SDH OC-12/STM-4

    ● SONET/SDH OC-24/STM-8

    ● DWDM Networks


    PN

    Data Rate

    (Gbps)

    Distance

    Fiber

    Output Power

    (dBm)

    Sensitivity

    (dBm)

    Interface

    Temp.

    DDM

    SPT-PDXX1G-80D

    1.25

    80km

    SM

    05

    -24

    Duplex LC

    0 to 70℃

    D

    SPT-PDXX1G-120D

    1.25

    120km

    SM

    05

    -32

    Duplex LC

    0 to 70℃

    D

    Note: XX = 17~61 (ITU Channel C-band)
