    Outdoor fiber optic cable, suitable for outdoor application. It is durable and can withstand the wind, the sun, the cold. the outer packaging is thick, and it has some mechanical properties such as pressure resistance, corrosion resistance and tensile strength. The outdoor optical cable is suitable for aerial, duct, direct buried and submarine etc.
  • Contact Us
  • Sopto fiber optic cable took the first lead to pass the ISO 9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC.

    If you want to know more about the exact information of fiber optical cable or get price,  Please Contact Us>>.


    Classification

    Features

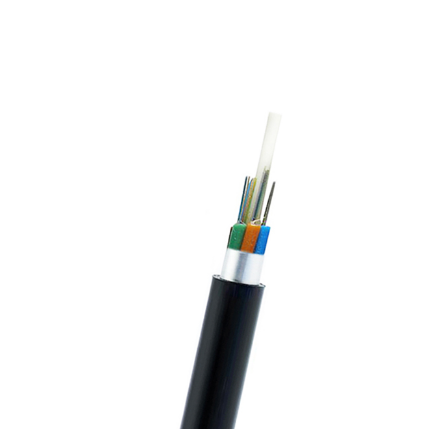

    Aerial Fiber Optical Cable


    ● 2 ~ 288 cores

    ● Bunched or ribbon fiber

    ● Loose-tube twisted single sheath or central tube structure

    ● Figure‘8’Self-Supporting optical cable and ADSS optical cable

    ● PE, LSZH outer jacket, material optional; AT outer jacket for ADSS

    ● SM (G.652D, G.655, G.657.A1,   G.657.A2) and MM (OM1, OM2, OM3, OM4) are available;

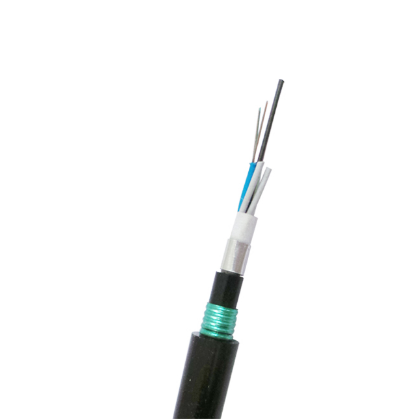

    Duct Fiber Optical Cable


    ● 2 ~ 576 cores

    ● Bunched or ribbon fiber

    ● Steel wire/FRP as strength member.

    ● Aluminum tape is more suitable for piping

    ● PE, ATLSZH outer jacket material optional

    ● Loose-tube twisted single sheath or central tube structure

    ● SM (G.652D, G.655, G.657.A1,   G.657.A2) and MM (OM1, OM2, OM3, OM4) are available;

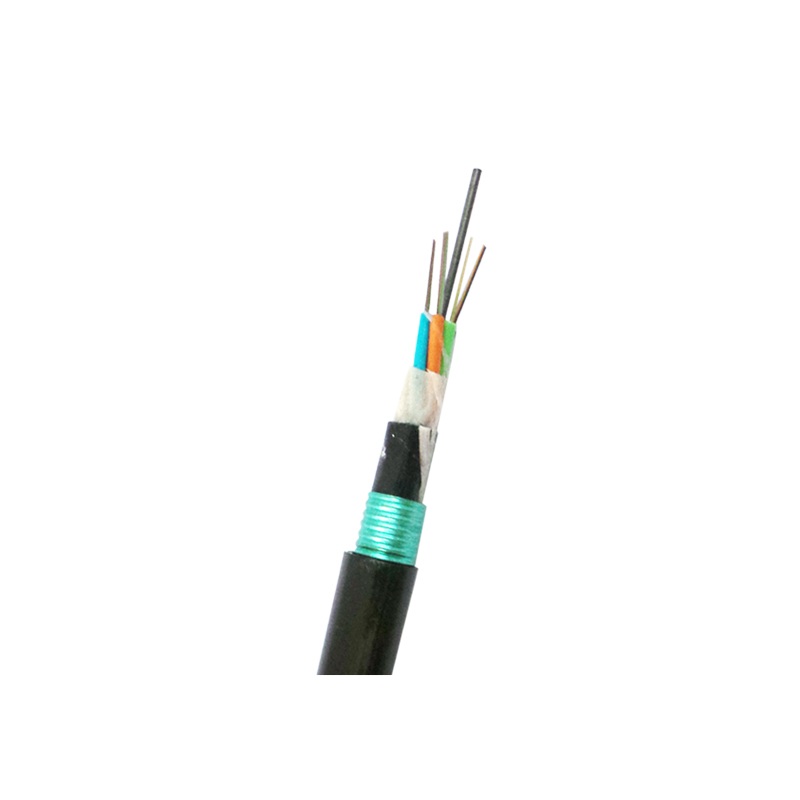

    Direct Buried Fiber Cable


    ● 2 ~ 576 cores

    ● Bunched or ribbon fiber

    ● PE, LSZH outer jacket material optional

    ● Steel wire/FRP as strength member.

    ● Must be double Jacketed, with at least one layer of armor.

    ● Good resistance to lateral pressure and softness

    ● SM (G.652D, G.655, G.657.A1,   G.657.A2) and MM (OM1, OM2, OM3, OM4) are available;


    Air Blowing Fiber Optical Cable


    ● 2 ~ 144 cores

    ● Rapid pipe installation

    ● Excellent flexibility and bending performance

    ● Loose tube filling compound ensure good moisture resistance performance

    ● Specially designed compact structure is good at preventing loose tubes from shrinking

    ● SM (G.652D, G.655, G.657.A1,   G.657.A2) and MM(OM1, OM2,OM3,OM4) are available;

    ● Non-mental design can prevent the cable from radio interference and magnetic wave interference

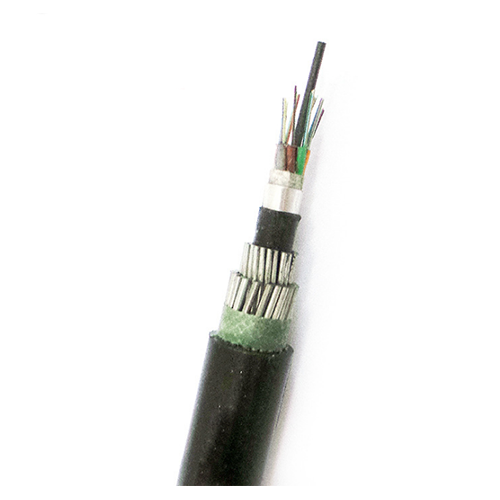

    Submarine Fiber Optical Cable


    ● 2 ~ 288 cores

    ● Steel wire armoring

    ● bunched or ribbon fiber

    ● Applicable for underwater 100 meters

    ● PELSZH outer jacket material optional

    ● Loose-tube twisted single sheath structure

    ● SM (G.652D, G.655, G.657.A1,   G.657.A2) and MM(OM1,OM2,OM3,OM4) are available;

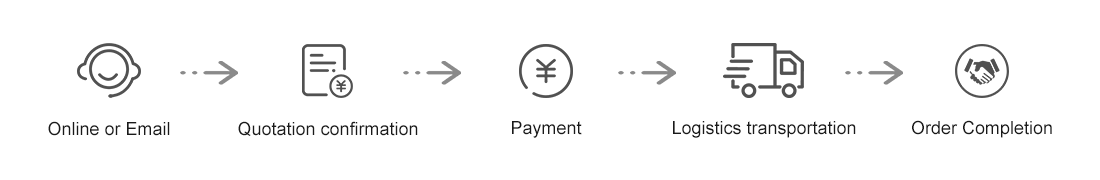

    Transaction Process
