  • Fiber Patch Panel

    Fiber Patch Panel, also know as optical distribution frame units , are installed in ODF, which offer flexible cabling access, expandable frame design and comprehensive cable management. 12 cores, 24 cores, 48 cores, 72 cores ,96 cores 120cores are available.
  • Contact Us
  • Classification

    Features

    12 cores_看图王.png

    12 cores-96cores ODF Unit Box

    ● Suitable for ribbon and single fiber

    ● Special structure door lock for quick switching

    ● The marking on the nameplate is easy to identify and operate

    ● 12-core, 24-core, 48-core, 72-core, 96-core optional, with or without pigtails and adapters

    ● Standard size, light weight, reasonable structure, can be used for 19-inch standard distribution frame

    ● Standard 12-core fusion-distribution integrated tray, optional according to adapter type (FC, SC, duplex LC, ST)

    ●  Cold-rolled steel plate (surface electrostatic spraying) box, adjustable mounting bracket position, adapt to different installation scenarios

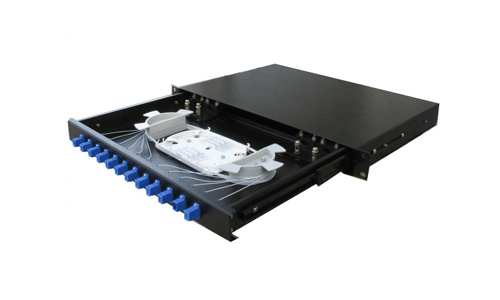

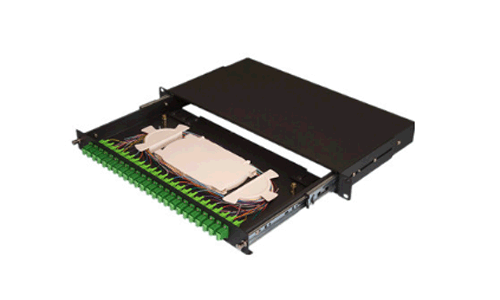

    12 cores Fiber Patch Panel

    ●  Standard 19-inch structure, can be installed in various standard racks

    ●  19" drawer type and 19" fixed type optional, easy to maintain and operate

    ●  1.2mm high quality cold-rolled sheet, the surface is sprayed with electrostatic coating, which is durable and durable.

    ●  Adapter panel can be selected according to the type of adapter, suitable for installing various adapters such as FC, SC, ST, 2LC, etc.

    ● Achieve opticalfiber splicing,storage,and configuration integrated structure, flexible, application,and convenient expansion

    ● The series products are designed and manufactured by the Ministry of Information Industry Standard YD / T 2150-2010, YD / T1117-2001

    24cores

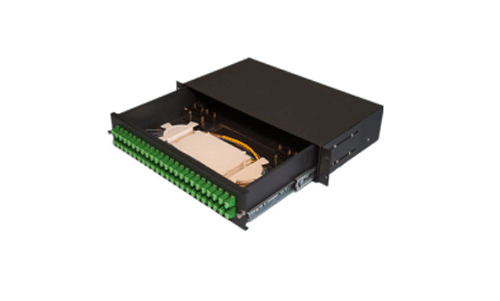

    24 cores Fiber Patch Panel

    36 cores

    36 cores Fiber Patch Panel

    48 cores

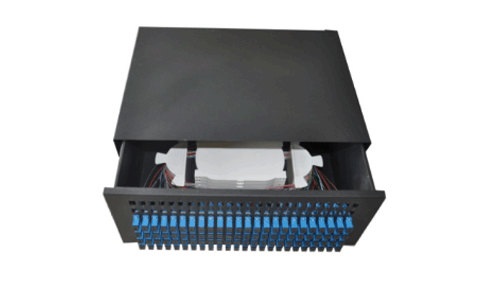

    48 cores Fiber Patch Panel

    72 cores

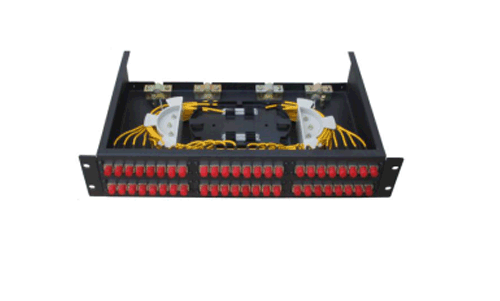

    match72 cores Fiber Patch Panel

    96 cores

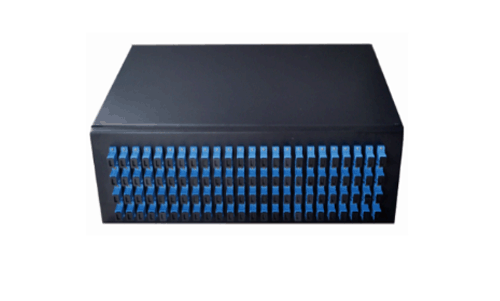

    96 cores Fiber Patch Panel

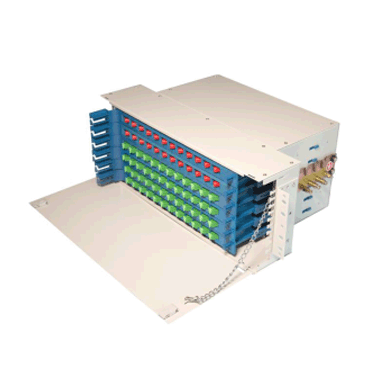

    96 cores-144 cores FDU

    96 cores 144cores FDU



    ● Optional aluminum or cold rolled sheet, high strength, corrosion resistance, light weight, easy to install and transport

    ● The entire surface is electrostatically sprayed and has a beautiful appearance.

    ●  Capacity can be flexibly customized according to needs. The maximum capacity can be installed with 23 plug-in 1:16 splitters.

    ●  Plug-in and box-type splitters can be installed at the same time. The guide rails are pulled and easy to assemble and disassemble.

    ●  Standard 19-inch structure, could be installed on various of standard racks.

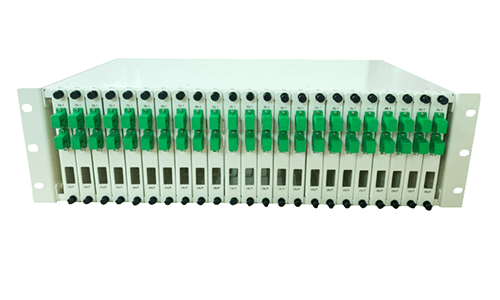

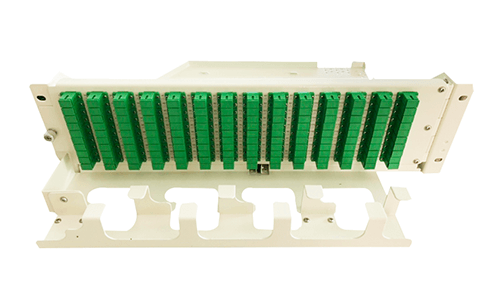

    19-inch 3U Splitter Rack

    3U Splitter Rack


    ● Optional aluminum or cold rolled sheet, high strength, corrosion resistance, light weight, easy to install and transport

    ●  The entire surface is electrostatically sprayed and has a beautiful appearance.

    ● Capacity can be flexibly customized according to needs. The maximum capacity can be installed with 23 plug-in 1:16 splitters.

    ● Plug-in and box-type splitters can be installed at the same time. The guide rails are pulled and easy to assemble and disassemble.

    ● Standard 19-inch structure, could be installed on various of standard racks.

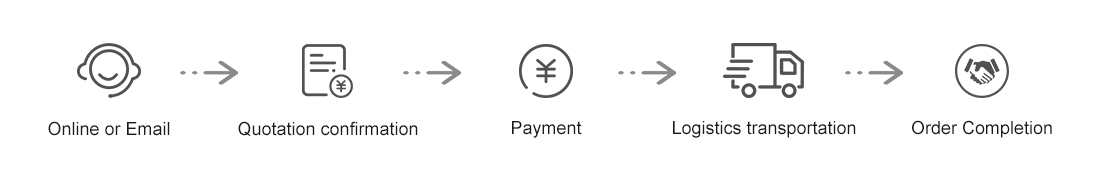

    Transaction Process
