  • Fiber Optic Splitter

    Fiber Optic Splitter in the era of optical communication is a component of forming PON network, It is a passive device used to connect OLT and ONU, its function is to distribute downlink data, and to concentrate uplink data.According to different spectral theory, splitter can be divided into PLC splitter and FBT splitter.
  • Contact Us
  • Fiber Optic Splitter has one uplink optical interface and a number of downlink optical interface. optical signals coming from uplink optical interface are transmitted to all of downlink optical interface, optical signals coming from downlink optical interface are transmitted to the one uplink optical interface .Just when optical signals transmitting from uplink optical interface to downlink optical interface, optical signal strength/optical power will decline, when optical signals transmitting from downlink optical interface to uplink optical interface, the same is true.Using splitter, we can also copy one optical data for monitoring after optical fiber transmission.


    Classification

    Features

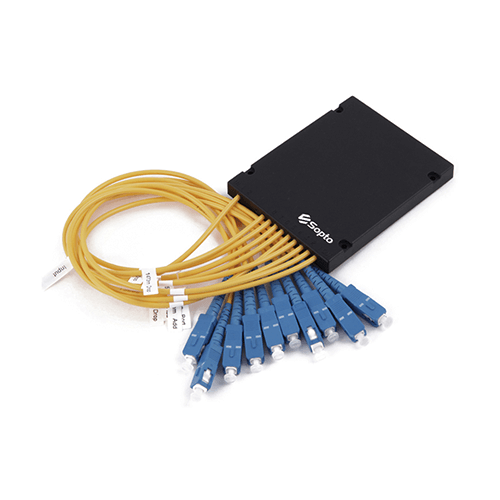

    PLC Splitter

    PLC splitter


    ● Low insertion loss, low polarization dependent loss, high return loss

    ● Stable performance and high reliability

    ● Excellent flatness and uniformity in the wavelength range of 1260nm to 1650nm

    ● There are multiple single channel shunts, up to 32 channels

    ● Wide operating temperature range  -40°C ~ +85°C, meeting various application requirements in different environments

    ● Compact structure design, standardized packaging, and a variety of packages to choose from, such as steel pipe, ABS box, rack, etc.

    ● Custom packaging and  configuration according to customer needs

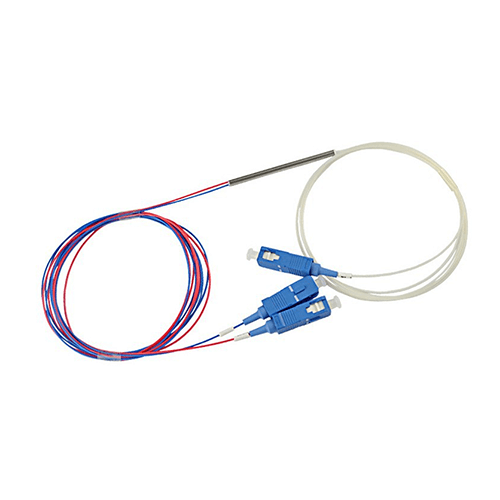

    FBT Splitter

    FBT Splitter


    ● Low insertion loss, mechanical  stability

    ● Loss is not sensitive to the wavelength of light, meets the need for transmission without wavelength, and has a wider application field.

    ● Compact structure, standardized packaging, optional splitting ratio

    ● 1×2, 1×4 and other low-channel splitter costs are more advantageous

    ● Can monitor the split ratio in real time as needed, and create unequal split ratios.

    ● Beautifully packaged and compact, can be customized and packaged according to customer needs



    Transaction Process

    Transaction Process.png

    Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order


    Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
