  • DWDM

    The functionality of DWDM resembles to the one of CWDM. Unlike to CWDM technology, the channel spacing for DWDM is 0.8/0.4 nm (100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information. Currently a restriction on wavelengths between 1530 nm and 1625 nm exists which corresponds to the C and L band. In this connection DWDM wavelengths from DWDM technology is more expensive compared to CWDM caused by the need of more sophisticated transceivers.
  • Contact Us
  • Classification

    Features

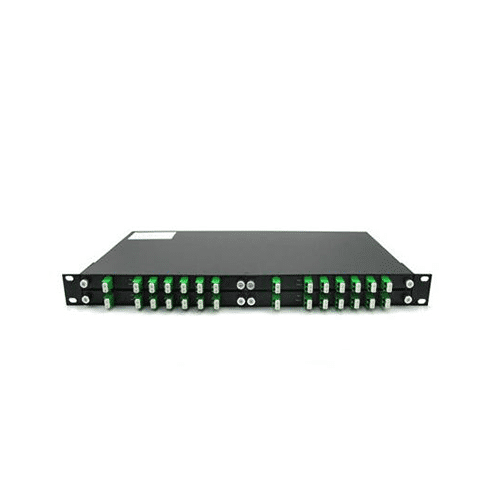

    DWDM MUX/DEMUX

    ● Low insertion loss

    ● Based on thin-film filter or AWG technology

    ● DWDM 100GHz or 50GHz ITU Channel Spacing, C17-C61 & H17-H61, X channels over Single or Duplex fiber

    ● LC/SC/FC/ST, UPC/APC Interface are available

    ● Rate transparent for applications up to 10Gbps

    ● Monitor/Upgrade/1310nm Express port for external functions

    ● Completely passive, no electric  power required

    ● 19 inch rack fixed, easy to install and use

    ● Low-profile modular LGX box design optional, fits in LGX chassis

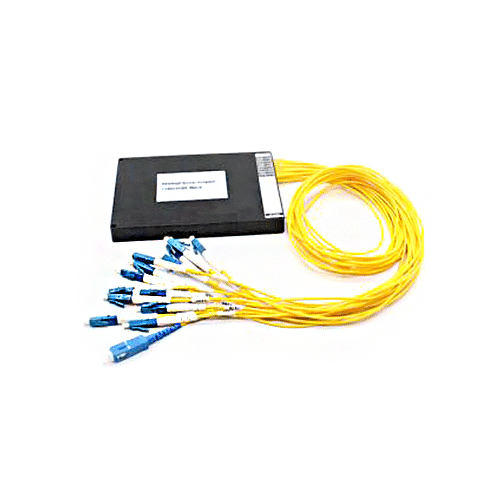

    DWDM Module


    ● Low insertion loss

    ● Based on thin-film filter or AWG technology

    ● DWDM 100GHz or 50GHz ITU Channel Spacing, C17-C61 & H17-H61, X channels over Single or Duplex fiber

    ● LC/SC/FC/ST, UPC/APC Interface are available

    ● The pigtail length is default of 1M and can be customized

    ● Rate transparent for applications up to 10Gbps

    ● Monitor/Upgrade/1310nm Express port/for external functions

    ● Completely passive, no electric power required

    ● Small in size ,can be quick installed in various boxes

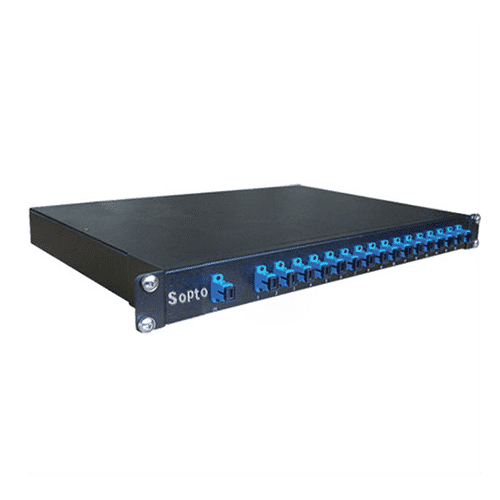

    DWDM OADM


    ● Low insertion loss

    ● Protocol transparent (support 1G, 10G etc.)

    ● Based on thin film optics with epoxy free optical path

    ● Fully compliant with Telcordia GR1221, GR1209, RoHS, ISO

    ● Ideal for WDM ring structures or daisy chain applications

    ● ADD<==>EXP,  DROP<==>COM

    ● Multiple packages available

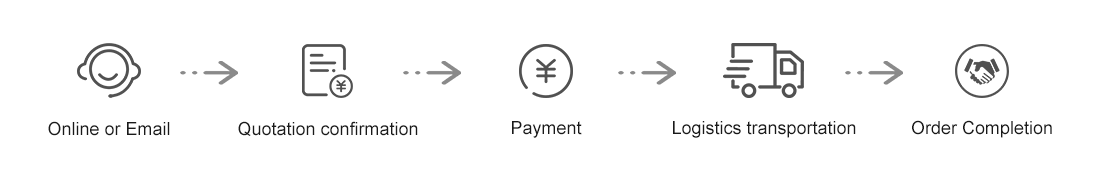

    Transaction Process

    Transaction Process.png

    Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order


    Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
