    The most commonly used types of network cable are the twisted pair LAN Cable, coaxial cable, and fiber optic. LAN Cable is used to connect and transfer data between computers and a network. The LAN Cable is the perfect solution for high density datacenter applications. For ethernet, there are different types of LAN cable, and the appropriate type to use will depend on the structure and topology of your network.
  • Contact Us
  • type

    Cat5

    Cat5e

    Cat6

    Cat6a

    Cat7

    Cat8

    Max rate

    100Mbps

    1000Mbps

    1000Mbps

    10Gbps

    1000Mbps

    25Gbps40Gbps

    FrequencyMHz

    100

    100

    250

    500

    600

    2000

    Max transmission distancm

    100

    100

    100

    100

    100

    30



    Classification

    Features

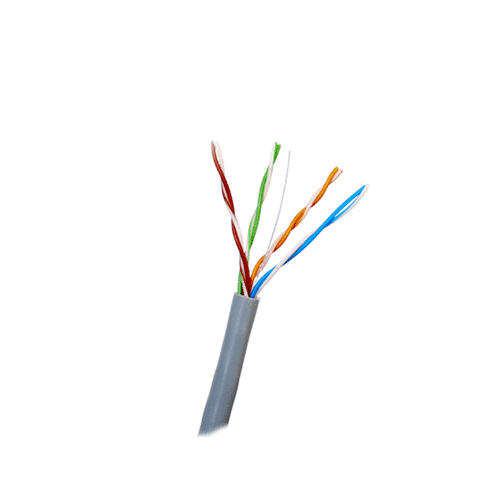

    Cat5e

    Cat5e


    ● FTP or UTP,SFTP

    ● 26AWG/24AWG/23AWG

    ● PVC/PE/LSZH Jacket optional

    ● Standard supports up to 100MHz and speeds up to 1000Mb/s over 100 meters of cable.

    ● Fully backward compatible with all the previous categories.

    ● RJ-45 plugs on both sides of the short LAN cable meet the standards of TIA/EIA-568B or 568A.

    ● RJ-45 plugs on both sides of the short LAN cable are designed with 50 mm gilt, with good contact and transmission properties, oxidation resistance, rust, and no blackening.

    ● Operating Temperature: -20 to 60°C

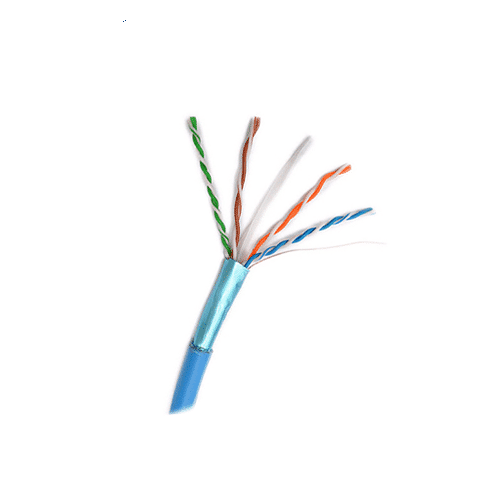

    Cat6/6a

    Cat6/6a


    ● FTP or UTP, SFTP

    ● 26AWG/24AWG/23AWG

    ● PVC/PE/LSZH Jacket optional

    ● Standard supports up to 250MHz and speeds up to 1000Mbp/s over 100 meters of Cat6 cable.

    ● Standard supports up to 250MHz and speeds up to 1000Mbp/s over 100 meters of Cat6a cable.

    ● Fully backward compatible with all the previous categories.

    ● RJ-45 plugs on both sides of the short LAN cable meet the standards of TIA/EIA-568B or 568A.

    ● RJ-45 plugs on both sides of the short LAN cable are designed with 50 mm gilt, with good contact and transmission properties, oxidation resistance, rust, and no blackening.

    ● Operating Temperature: -20 to 60°C

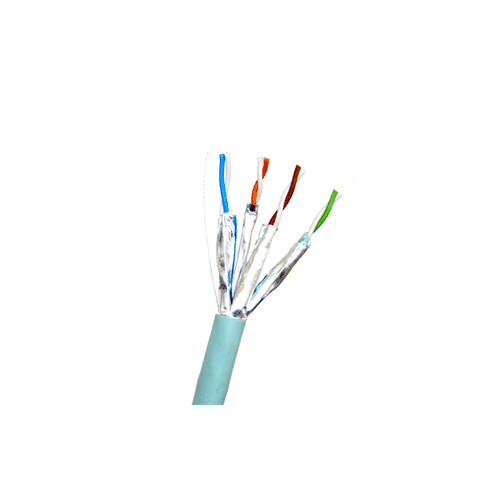

    Cat7

    Cat7


    ● FTP

    ● 26AWG

    ● PVC/PE/LSZH Jacket optional

    ● Standard supports up to 600MHz and speeds up to 10Gbp/s over 100 meters of cable.

    ● Fully backward compatible with all the previous categories.

    ● RJ-45 plugs on both sides of the short LAN cable meet the standards of TIA/EIA-568B or 568A.

    ● RJ-45 plugs on both sides of the short LAN cable are designed with 50 mm gilt, with good contact and transmission properties, oxidation resistance, rust, and no blackening.

    ● Operating Temperature: -20 to 60°C

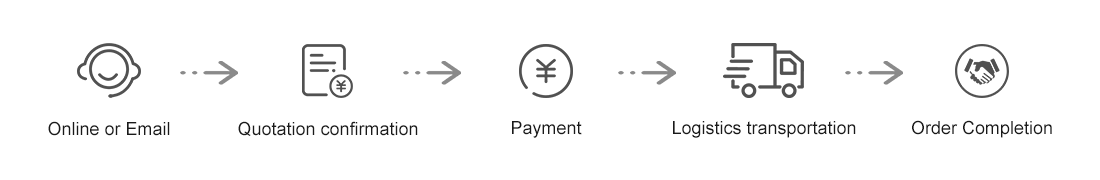

    Transaction Process

    Transaction Process.png

    Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order


    Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
