    Sopto provides the categories of 10G Transceiver include 10G SFP+/XFP,BIDI SFP+/XFP,CWDM SFP+/XFP,DWDM SFP+/XFP,They are designed for using in 10G Ethernet, 10G Fiber Channel, SONET/SDH OC-192/STM-64, and OTN OTU2e links, compliant with the SFP+/XFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
  • Contact Us
  • 10G SFP+/XFP is a series of optical transceiver modules operating at 850nm, 1310nm, and 1550nm wavelengths on Multi-Mode Fiber (MMF) or Single Mode Fiber (SMF).

    BIDI SFP+/XFP is a series of optical transceiver modules operating over single Single-Mode Fiber (SMF).

    CWDM SFP+/XFP is a series of optical transceiver modules operating at 1270-1610nm CWDM wavelengths over single-Mode Fiber (SMF).

    DWDM SFP+/XFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths over single-Mode Fiber (SMF).

    Classification

    Features

    10G SFP+ Transceiver Modules.png

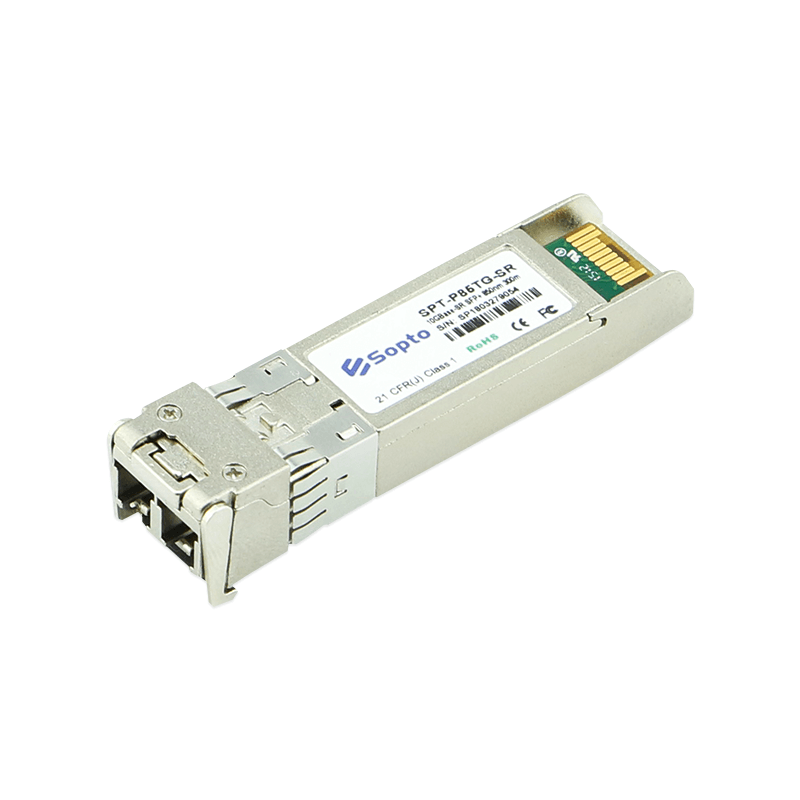

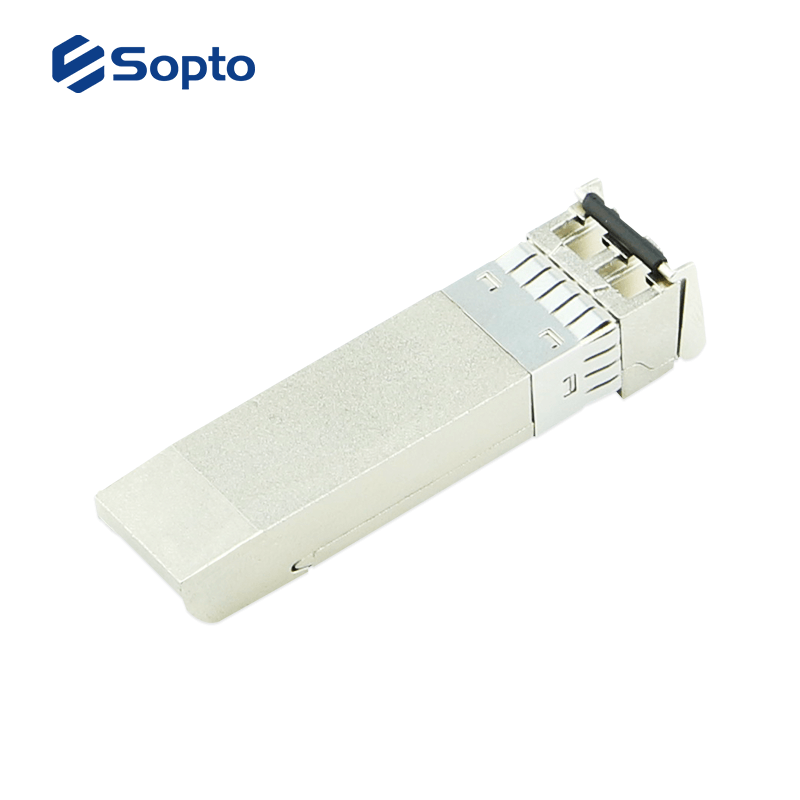

    10G SFP+ Transceivers

    ● RoHS 6 compliant

    ● 1G/10G Ethernet compliance

    ● Compliant to SFF-8431 SFF-8432

    ● Laser Class 1 IEC / CDRH compliant

    ● Transmission distance up to 100km (SM fiber)

    ● SFP+ 10G with CDR both at TX and RX side.

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

    10G XFP Transceivers.png

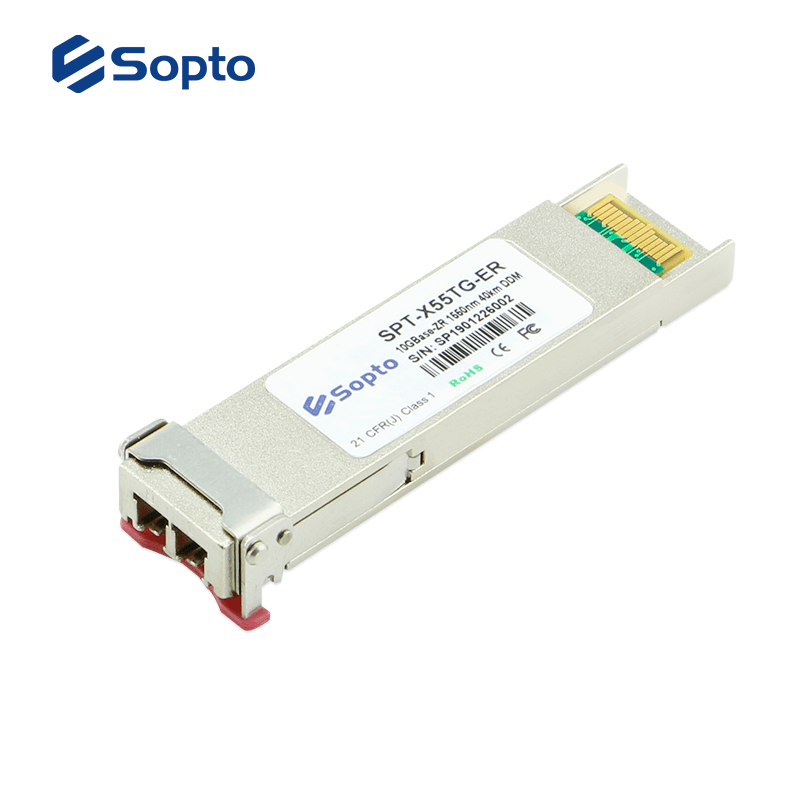

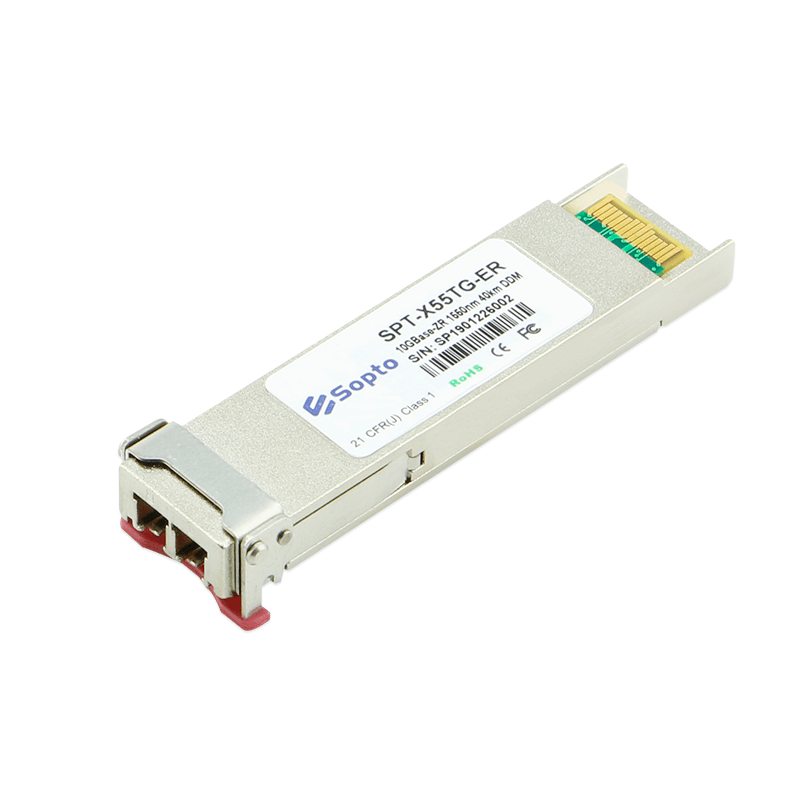

    10G XFP Transceivers


    ● RoHS 6 compliant

    ● Hot-pluggable XFP footprint

    ● Maximum link length of 80km

    ● Built-in digital diagnostic functions, DDMI

    ● DFB or Temperature-stabilized EML Transmitter

    ● Supports 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates

    ● IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.

    ● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)

    10G BIDI SFP+ Transceivers.png

    10G BIDI SFP+ Transceivers

    ● RoHS 6 compliant

    ● Simplex SC or LC Interface

    ● Fully Compliant with SFP+ MSA

    ● Distance Up to 10, 20, 40, 60,80km

    ● SFF-8472 Digital Diagnostic Function

    ● 1270nm&1330nm or 1490nm&1570nm

    ● Up to 11.3 Gbps Bi-directional Data Links

    ● Compliant to IEEE 802.3ae 10GBASE-BX or SDH/SONET standards

    10G BIDI XFP Transceivers.png

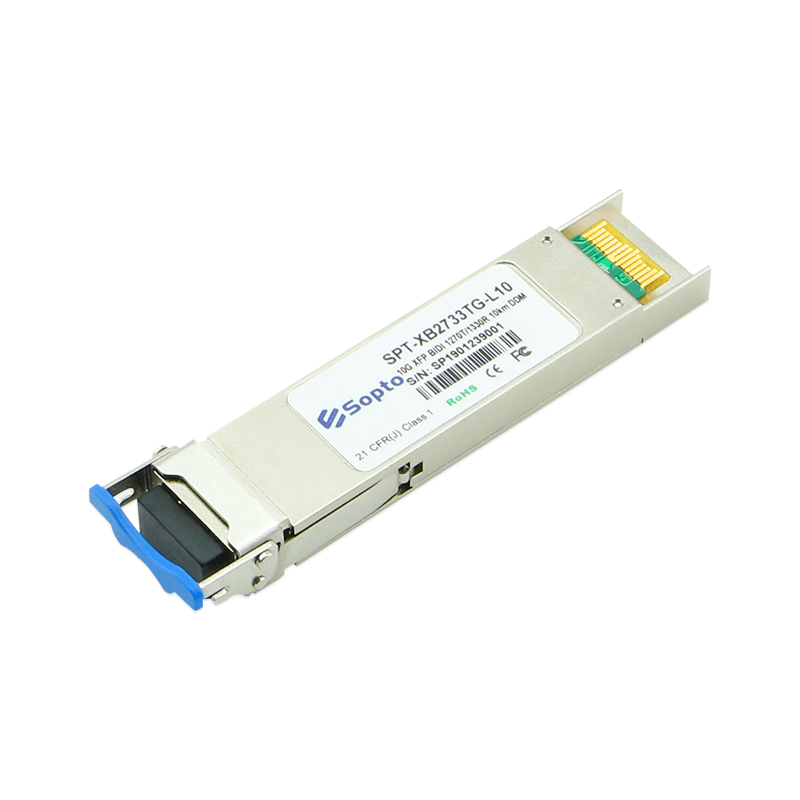

    10G BIDI XFP Transceivers

    ● RoHS 6 compliant

    ● Simplex LC Interface

    ● Fully Compliant with XFP MSA

    ● Distance Up to 10, 20, 40, 60,80km

    ● SFF-8472 Digital Diagnostic Function

    ● 1270nm&1330nm or 1490nm&1570nm

    ● Compliant to IEEE 802.3ae 10GBASE-BX or SDH/SONET standards

    10G CWDM SFP+XFP.png

    10G CWDM SFP+/XFP Transceivers

    ● RoHS 6 compliant

    ● Supports 9.95Gb/s to 11.3Gb/s bit Rates

    ● 2G/4G/8G/10G Fibre Channel compliance

    ● Compliant to IEEE 802.3ae 10GBASE

    ● Power Budget up to 10dB, 14dB, 16dB, 23 dB

    ● Maximum Link Length of 80 km at 10.3125Gb/s

    ● Compliant with SFF-8431, SFF-8432, SFF-8472

    ● Uncooled 18-λ CWDM DFB/cooled EML LD: from 1270 nm to 1610 nm

    10G DWDM SFPXFP.png

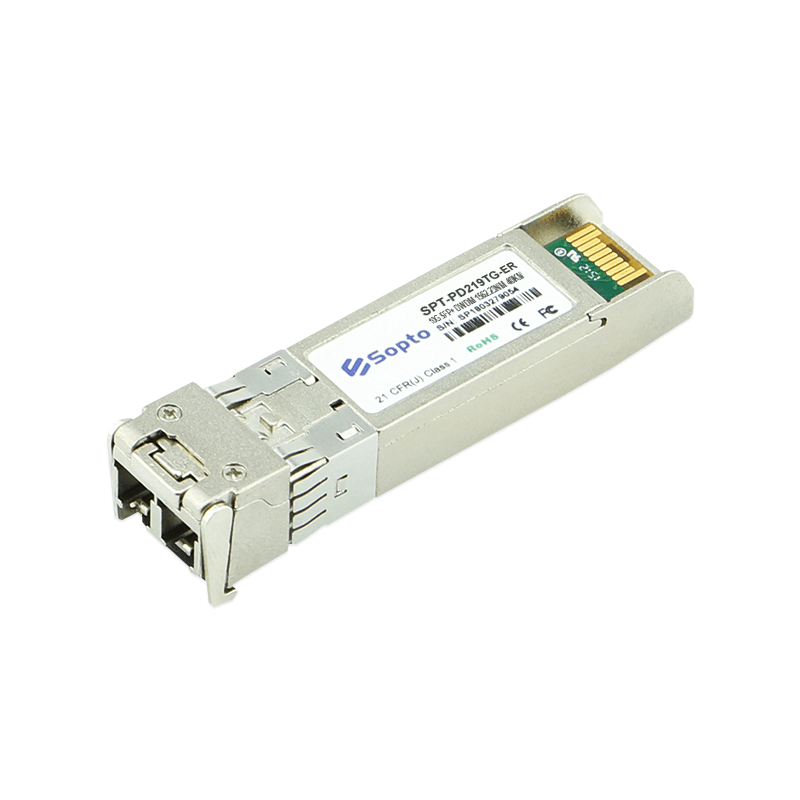

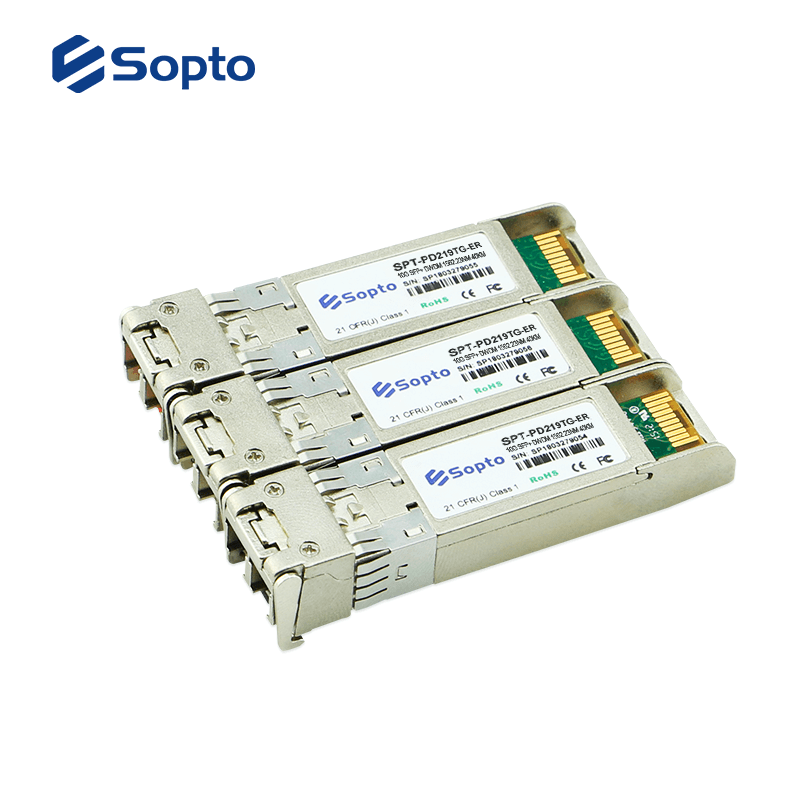

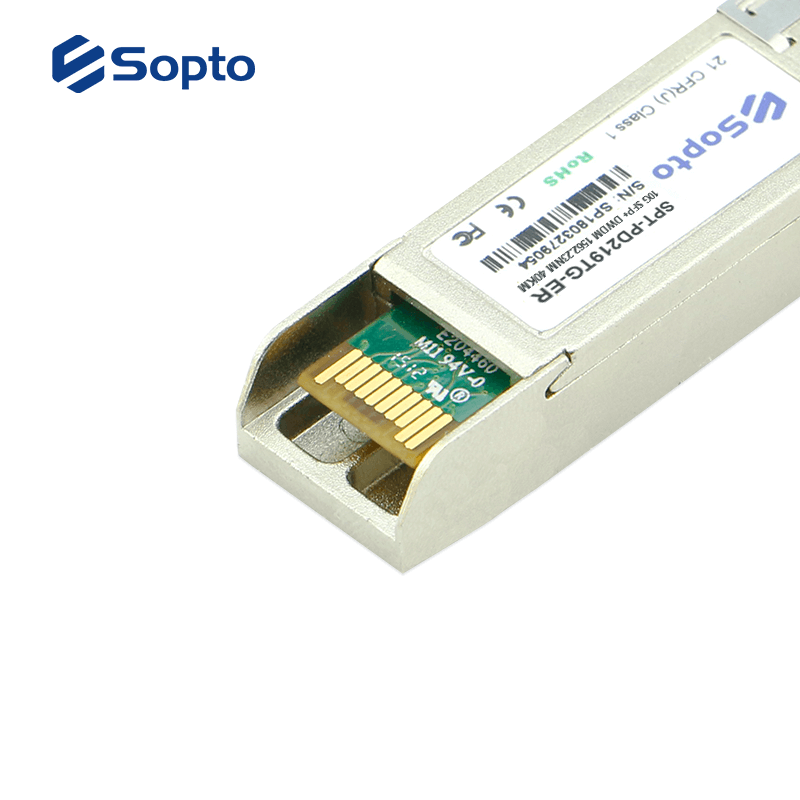

    10G DWDM SFP+/XFP Transceivers

    ● RoHS 6 compliant

    ● Maximum Link Length of 80 km

    ● Single +3.3 V Power Supply

    ● Support 9.95 Gbps to 11.1Gbps

    ● Maximum Link Length of 80 km

    ● Compliant to IEEE 802.3ae 10GBASE-ZR and 10GBASE-ER; SFP+ MSA

    ● Compliant with SFF-8431 MSA ,SFF-8432 MSA ,SFF-8436 and SFF-8472

    ● Available in all C-Band Wavelengths on the 100GHz or 50GHz DWDM ITU Grid

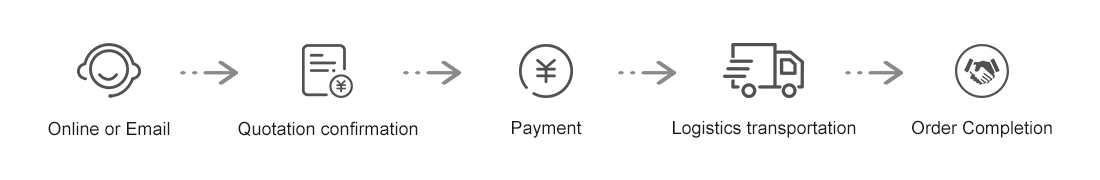

    Transaction Process

    Transaction Process.png

    Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order


    Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
