    sfp 10g sr 850nm 300m DDM Module

  • Learning Center    release time:2019-08-09

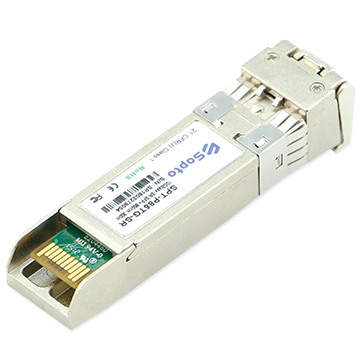

  • sfp module.png

    Fearures

    ● Hot Pluggable

    ● Low power consumption

    ● Optical interface compliant to IEEE 802.3ae 10GBASE-SR

    ● Electrical interface compliant to SFF-8431

    ● 850nm VCSEL transmitter, PIN photo-detector

    ● Maximum link length of 300m on 2000MHz/km MMF

    ● Operating case temperature: 0 to 70

    ● All-metal housing for superior EMI performance

    ● Advanced firmware allow customer system encryption information to be stored in transceiver

    ● Cost effective SFP+ solution, enables higher port densities and greater bandwidth

    All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.


    Application

    ● 10GBASE-SR at 10.3125Gbps

    ● 10GBASE-SW at 9.953Gbps

    ● Other optical links


    Absolute Maximum Ratings

    Parameters

    Symbol

    Min.

    Max.

    Unit

    Power Supply Voltage

    VCC

    0

    +3.6

    V

    Storage Temperature

    Tc

    -40

    +85

    °C

    Operating Case   Temperature

    Tc

    0

    +70

    °C

    Relative Humidity

    RH

    5

    95

    %

    RX Input   Average Power

    Pmax

    -

    0

    dBm

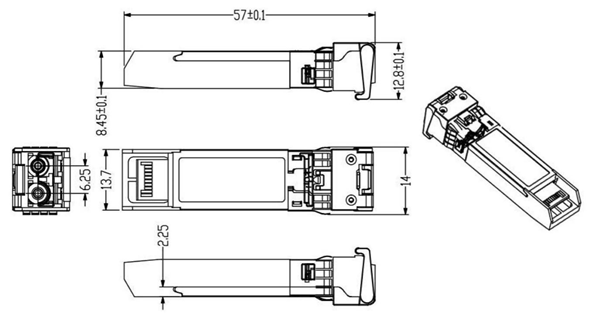

    Mechanical Dementions

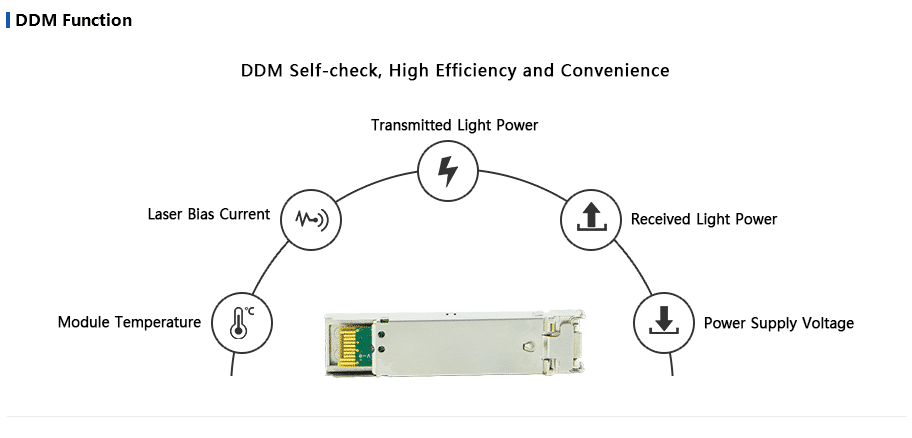

    sfp merchanical dementions jpgsfp quality .pngsfp testing .pngsfp ddm function.pngsfp testing  (2).pngsfp certification.png

    Ordering Information

    Part No.

    Description

    Details

    SPT-P85TG-SR

    Transceiver SFP+ 850nm 10G LC Connector 300m with DDM Commercial Temperature

    PDF


    If you want to know more about the exact information of the specified transceiver or get price, please contact us.
