    What are the common ADSS accessories?

  • Learning Center    release time:2020-03-23
  • With the construction of the network, the demand for ADSS accessories is also increasing. What are the common ADSS accessories? Next, briefly introduce some common ADSS accessories.

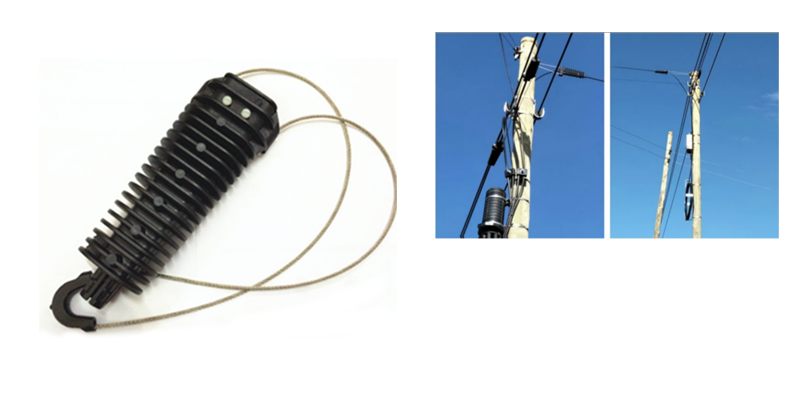

    Tension Clamp for ADSS Cable

    Tension Clamps are self-adjusting, designed to tension ADSS optical fiber cable on overhead telecommunication lines.The ADSS tension clamp consists of self-adjusting plastic wedges, which clamp the optical cable without damaging. Wide range of gripping capacities archived by different types of wedges ADSS anchor clamp.

    Tension Clamp for ADSS Cable.png

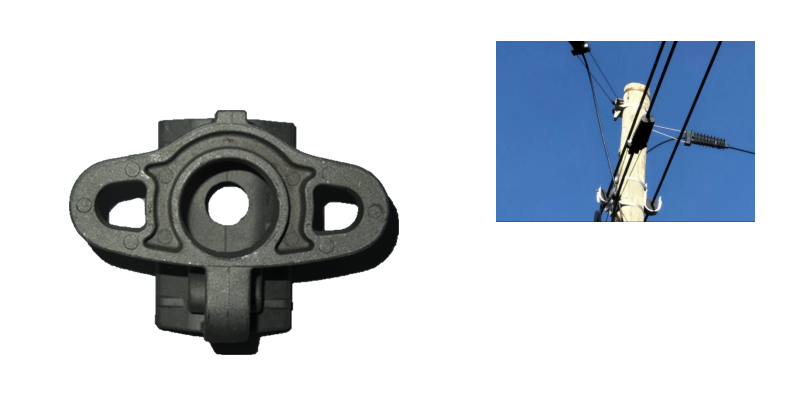

    Aluminum Pole Bracket


    The aluminum Pole Bracket manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.

    Aluminum Pole Bracket.png

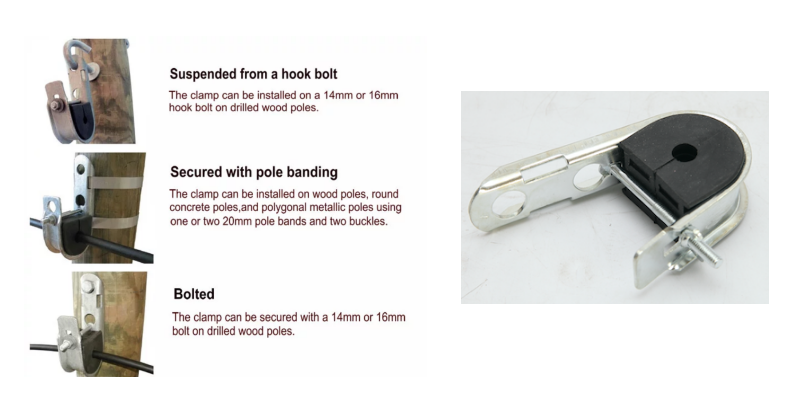

    Suspension Clamp

    Suspension clamps designed to suspend ADSS round cable during construction of transmission lines, The ADSS clamp consists of plastic insert, which clamp the cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of plastic inserts.The clamp can install on the pole by using stainless steel band or pigtail hook.

    Suspension Clamp.png

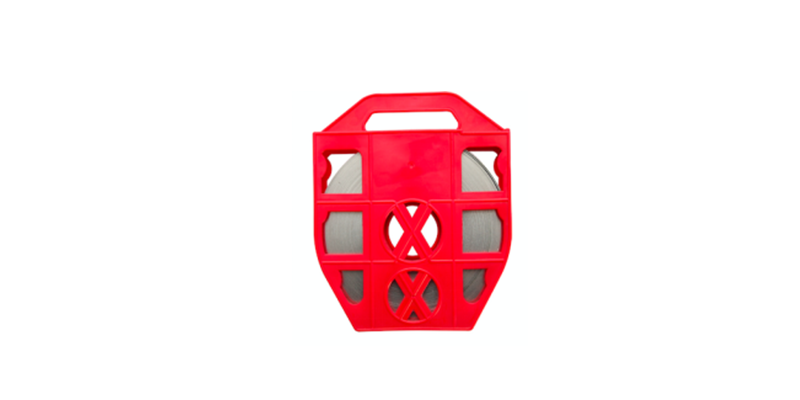

    201 Stainless Steep Strap (50m)

    The stainless steel banding can guarantee extended service life; and attaching under significant mechanical loads. Minimal breaking load is also different depending on the grade of steel.

    Installation:

    • Cut the stainless steel strap with needed length by strap banding tool

    • Put on it the stainless steel buckle

    • Fix the strap by moving the strap banding tool wheel, then cut the band.

    201 Stainless Steep Strap (50m).png

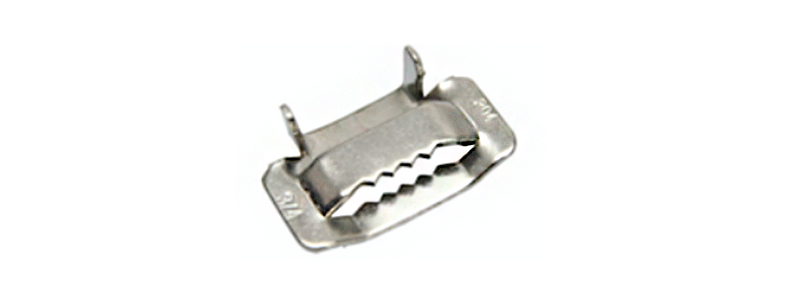

    Buckle

    The stainless Steel Buckle is used for Cable Clamps/ADSS Fittings.

    Type

    Width

    Material

    buckles

    20mm

    SS304

    It is match with the 20mm width 201 stainless steel.

    Installation:

     • Cut the stainless steel strap with needed length by strap banding tool

     • Put on it the stainless steel buckle

     • Fix the strap by moving the strap banding tool wheel, then cut the band.


     If you need more information about ADSS accessories, please contact [email protected]
