    1.25Gbps SFP Bi-Directional Transceiver,10km or 20km Reach

  • Learning Center    release time:2019-11-28
  • The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

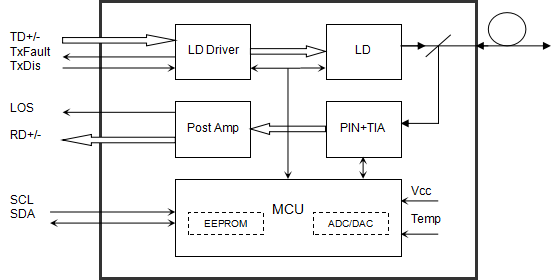

    The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.




    Features :

    ● Dual data-rate of 1.25Gbps/1.063Gbps operation

     1310nm FP or 1490/1550nm DFB laser and PIN photo detector for 20km transmission

     Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle

     Digital Diagnostic Monitoring: Internal Calibration or External Calibration

     Compatible with SONET OC-24-LR-1

     Compatible with ROHS

     +3.3V single power supply

     Operating case temperature:

                                                   Standard: 0 to +70°C

                                                   Industral: -40 to +85°C

    Sopto can provide you full range of 1.25g sfp transceiver. If there is any needs, then please do not hesitate to send us your inquiry, Email:[email protected]


    Tags: 1.25g sfp, sfp transceiver, 1.25g sfp BIDI
